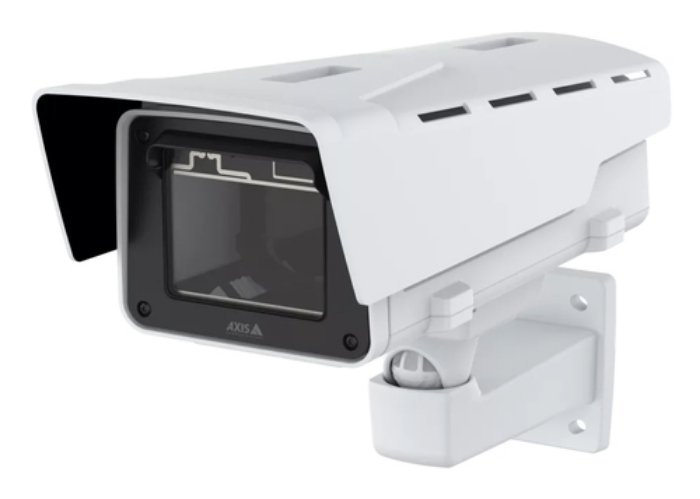

Axis TQ1819-E. Type: Housing & mount, Placement supported: Universal, Brand compatibility: Axis. Input voltage: 10 - 28 V, Power consumption (typical): 2 W, Power consumption (max): 25.5 W. Width: 178 mm, Depth: 441 mm, Height: 303 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Type	Housing & mount
Placement supported	Universal
Brand compatibility	Axis
Compatibility	P1385, P1385-B, P1387, P1387-B, P1388, P1388-B, Q1656, Q1656-B, Q1715, Q1728
Product colour	Black,White
Networking standards	IEEE 802.3at
International Protection (IP) code	IP66, IP67
IK code	IK10
Protection features	Impact resistant,Weather resistant,Wind resistant
Certification	CSA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Teil 15 Abschnitt B Klasse A, IEC 62236-4

Input voltage	10 - 28 V
Power consumption (typical)	2 W
Power consumption (max)	25.5 W
Power source type	PoE

Depth	441 mm
Height	303 mm
Weight	4100 g
Width	178 mm

Quantity per pack	1 pc(s)

Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-40 - 60 °C

Compliance certificates	CE,RCM,REACH,RoHS,Trade Agreements Act (TAA),UKCA,UL,VCCI,cUL
Doesn't contain	BFR,CFR,PVC
