Produktbeskrivning

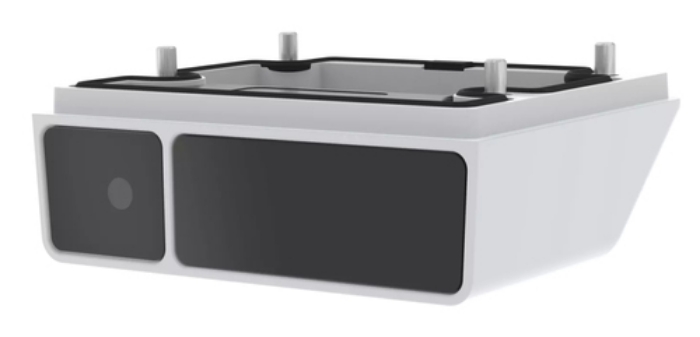

AXIS TQ1919-E IR Illuminator Kit is an optional IR kit accessory designed to fit selected outdoor models in AXIS P13 Series, AXIS P15 Series and AXIS Q16 Series. It enables cost-efficient surveillance in pitch darkness and includes power-efficient, covert long-life 940 nm IR LEDs with a range of reach of 40 m (131 ft) or more depending on the scene. The IP66/67 and IK10-rated IR kit can easily be mounted on the bottom of the outdoor models of selected box cameras.



Viktiga egenskaper

Axis TQ1919-E IR Illuminator Kit. Type: Illuminator, Placement supported: Outdoor, Brand compatibility: Axis. Input voltage: 8 - 28 V, Power consumption (typical): 8 W, Power consumption (max): 10 W. Weight: 250 g. Quantity per pack: 1 pc(s)



Teknisk specifikation

Type	Illuminator
Placement supported	Outdoor
Brand compatibility	Axis
Compatibility	AXIS P13 Series, AXIS P15 Series, AXIS Q16 Series.
Product colour	Black,White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
Certification	CSA, UL/cUL, CE, KC, VCCI, RCM

Input voltage	8 - 28 V
Power consumption (typical)	8 W
Power consumption (max)	10 W
Power source type	DC

Weight	250 g

Quantity per pack	1 pc(s)

Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %

Safety warning	CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC/EN 62471 risk group exempt
Warranty period	5 year(s)
