Produktbeskrivning

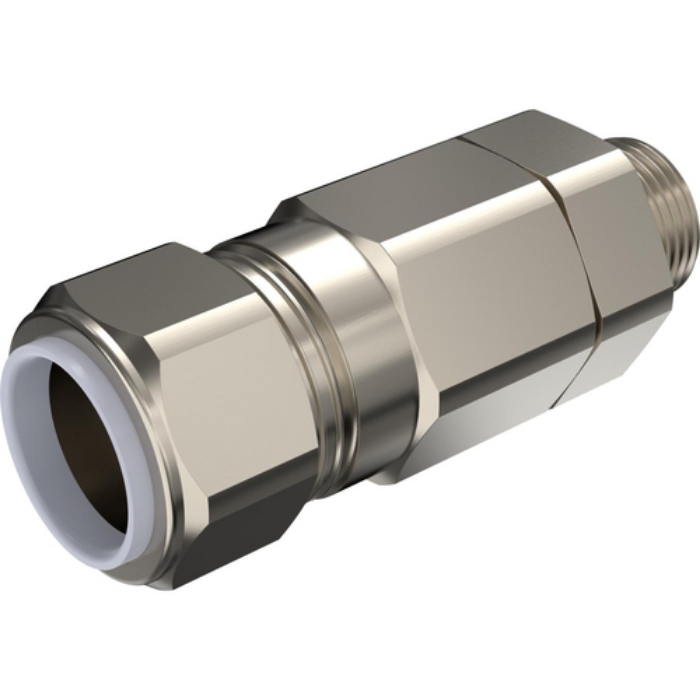

AXIS TQ1943-E Cable Gland Ex d Armored

For hazardous area compliance, the Ex d cable gland maintains a secure entry where the armored cable connects to the camera or junction box. The cable gland is certified for flameproof enclosures. It comes in two sizes to fit cable entries with M20x1.5 or M25x1.5 threads. It has an IP66/IP67 and 68-rating which means it is protected from dust ingress and it is designed for harsh weather conditions.



Viktiga egenskaper

Axis TQ1943-E. Product colour: Stainless steel, White, Connecting thread type: M20, Cable diameter (min): 1.25 cm. Weight: 280 g



Teknisk specifikation

Product colour	Stainless steel,White
Connecting thread type	M20
Cable diameter (min)	12.5 mm
Cable diameter (max)	20.9 mm
International Protection (IP) code	IP66, IP67, IP68
Operating temperature (T-T)	-60 - 130 °C

Weight	280 g

Compliance certificates	REACH,RoHS
Doesn't contain	CFR,PVC,PVC/BFR
