Produktbeskrivning

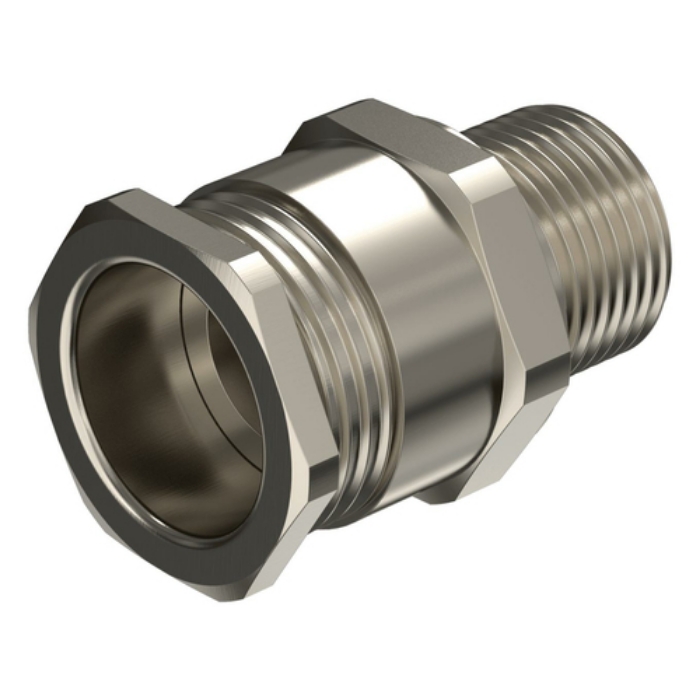

For hazardous area compliance, the Ex d cable gland maintains a secure entry where the non-armored cable connects to the camera or junction box. The cable gland is certified for flameproof enclosures. It comes in two sizes to fit cable entries with M20x1.5 threads or M25x1.5. It has an IP66/IP67 and 68-rating which means it is protected from dust and water ingress and designed for harsh weather conditions.



Viktiga egenskaper

Axis 03075-001. Product colour: Silver, Material: Brass, Nickel, Quantity per pack: 1 pc(s). Weight: 70 g



Teknisk specifikation

Product colour	Silver
Material	Brass,Nickel
Quantity per pack	1 pc(s)
Form factor	Straight
Connecting thread type	M20x1.5
Cable diameter (min)	6.5 mm
Cable diameter (max)	14 mm
International Protection (IP) code	IP66, IP67, IP68
Operating temperature (T-T)	-60 - 130 °C

Weight	70 g

Warranty period	5 year(s)
Doesn't contain	BFR,PVC,CFR
Compliance certificates	CE,REACH,RoHS,Trade Agreements Act (TAA)
