Produktbeskrivning

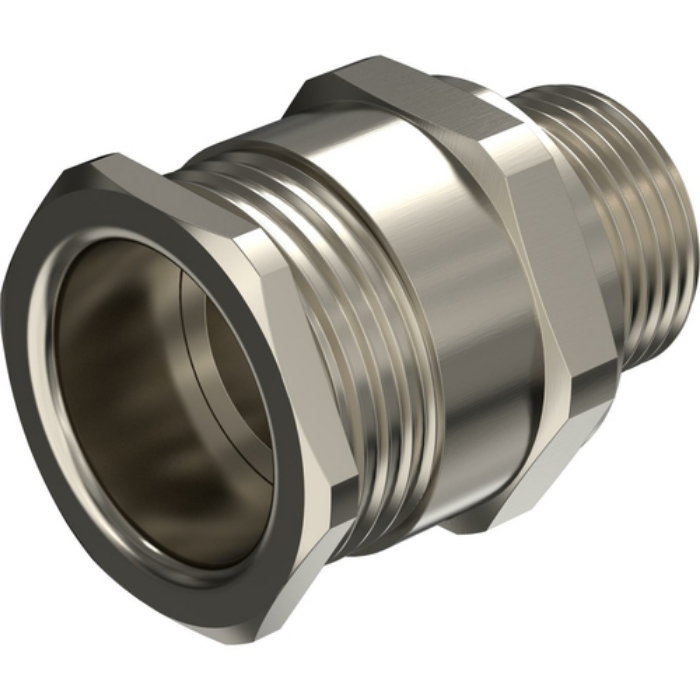

For hazardous area compliance, the Ex d cable gland maintains a secure entry where the non-armored cable connects to the camera or junction box. The cable gland is certified for flameproof enclosures. It comes in two sizes to fit cable entries with M20x1.5 threads or M25x1.5. It has an IP66/IP67 and 68-rating which means it is protected from dust and water ingress and designed for harsh weather conditions.



Viktiga egenskaper

Axis 03076-001. Product colour: Silver, Material: Brass, Nickel, Quantity per pack: 1 pc(s). Weight: 130 g



Teknisk specifikation

Product colour	Silver
Material	Brass,Nickel
Form factor	Straight
Quantity per pack	1 pc(s)
Connecting thread type	M25x1.5
Cable diameter (min)	11.1 mm
Cable diameter (max)	20 mm
Operating temperature (T-T)	-60 - 130 °C

Weight	130 g

Doesn't contain	BFR,PVC
Warranty period	5 year(s)
Compliance certificates	CE,REACH,RoHS,Trade Agreements Act (TAA)
