Produktbeskrivning

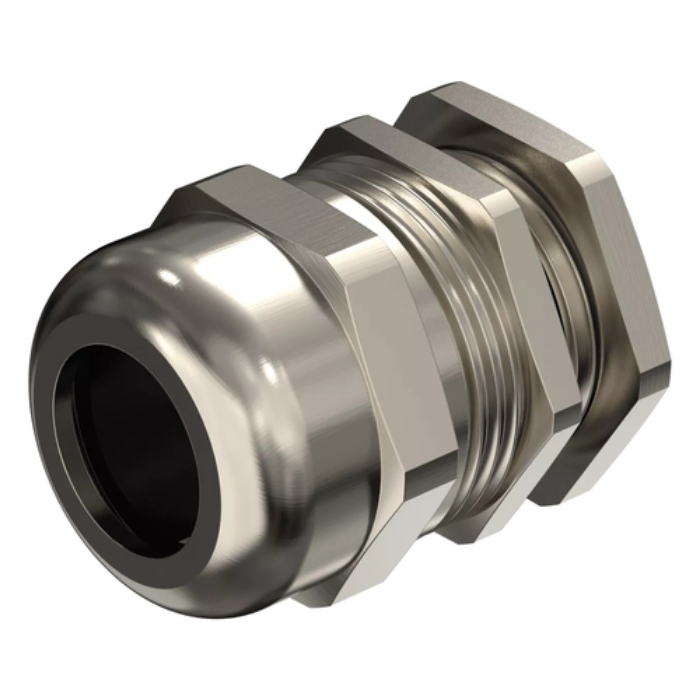

For hazardous area compliance, the Ex e cable gland maintains a secure entry where the non-armored cable connects to the camera enclosure or junction box. The cable gland is certified for increased safety. It fits cable entries with M20x1.5 threads. It has an IP66/IP67 and IP68-rating which means it is protected from dust and water ingress, and it is designed for harsh weather conditions.



Viktiga egenskaper

Axis TQ1952-E. Product colour: Grey, Material: Brass, Quantity per pack: 1 pc(s). Weight: 42 g



Teknisk specifikation

Product colour	Grey
Material	Brass
Quantity per pack	1 pc(s)
Form factor	Straight
Connecting thread type	M20x1.5
Cable diameter (min)	8 mm
Cable diameter (max)	13 mm
International Protection (IP) code	IP66, IP67, IP68
Operating temperature (T-T)	-40 - 85 °C

Weight	42 g

Doesn't contain	BFR,CFR,PVC
Compliance certificates	CE,REACH,RoHS,Trade Agreements Act (TAA),IECEx,ATEX
Warranty period	5 year(s)
