Produktbeskrivning

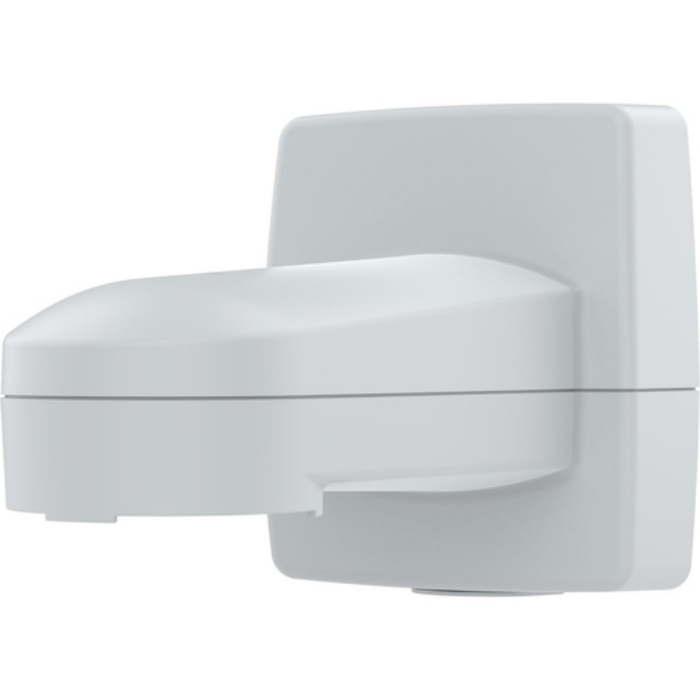

Designed for Axis PTZ cameras, AXIS TQ5001-E Wall-and-Pole Mount offers flexible installation and versatile connection with RJ45 or IDC connectors.

With this wall-and-pole mount, installers can choose between using an RJ45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TQ5001-E is suited for both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS TQ5001-E from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.



Viktiga egenskaper

Axis TQ5001-E. Type: Mount, Placement supported: Universal, Brand compatibility: Axis. Width: 152.6 mm, Depth: 291.8 mm, Height: 175.4 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Type	Mount
Placement supported	Universal
Brand compatibility	Axis
Compatibility	M5000 PTZ, M5000-G PTZ, M5525-E PTZ, M5526-E PTZ, P5654-E Mk II PTZ, P5655-E PTZ, P5676-LE PTZ, Q6010-E, Q6074 PTZ, Q6074-E PTZ, Q6075 PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6100-E, Q6135-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ
Product colour	White
Housing material	Aluminium
International Protection (IP) code	IP66
IK code	IK10
Protection features	Dust resistant,Impact resistant,Water resistant
Certification	CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM, TAA

Width	152.6 mm
Height	175.4 mm
Depth	291.8 mm
Weight	1960 g

Quantity per pack	1 pc(s)

Operating temperature (T-T)	-50 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	10 - 100 %

Doesn't contain	PVC
