Produktbeskrivning

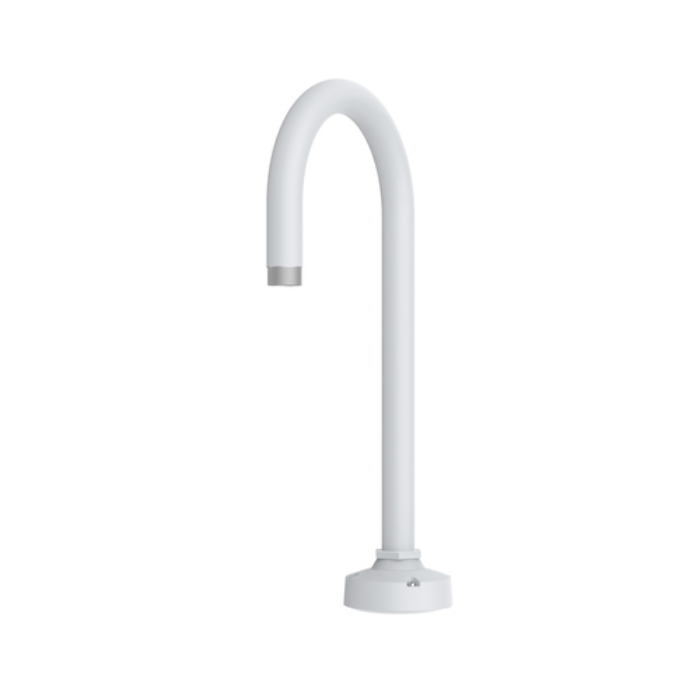

AXIS TQ6501-E Parapet Mount is a robust, outdoor-ready mount made of aluminum. The round base of the mount makes it easy to install as well as suitable for installations on poles. It’s compatible with Axis pendant kits with 1.5’’ NPS or NPT inner thread which enables mounting of several Axis cameras, and Axis ACI ¾’’ conduit adapters. Cables can be routed through the bottom, or from the side by using a conduit connection. AXIS TQ6501-E has four holes for standard pole mounted pan and tilt camera fixings, equi-spaced on 101.6 PCD.



Viktiga egenskaper

Axis 02110-001. Type: Mount, Placement supported: Universal, Brand compatibility: Axis. Connecting thread: 3/4". Width: 160 mm, Depth: 418 mm, Height: 754 mm



Teknisk specifikation

Type	Mount
Placement supported	Universal
Brand compatibility	Axis
Compatibility	AXIS ACI Conduit Adapter 3/4" U-Shape 30 mm AXIS ACI Conduit Adapter 3/4″ NPS AXIS P33-VE Network Cameras Pendant Kit AXIS T91A6 Pipe Seal AXIS T94A01D Pendant Kit AXIS T94B02D Pendant Kit AXIS T94F01D Pendant Kit AXIS T94
Product colour	White
Housing material	Aluminium
Cable routing	Internal
Easy to install	Yes

Connecting thread	3/4 "

Depth	418 mm
Width	160 mm
Height	754 mm
Weight	2500 g

Harmonized System (HS) code	85299020
