Produktbeskrivning

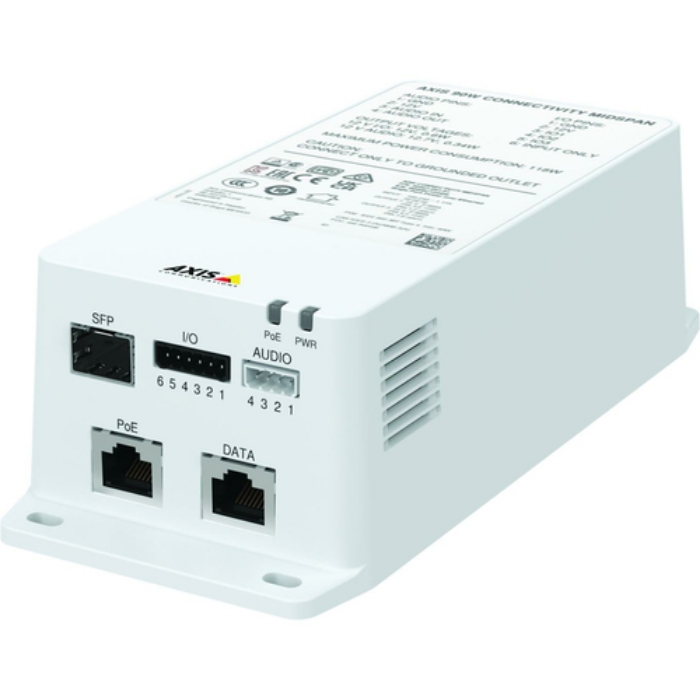

AXIS TU8003 90 W Connectivity Midspan

This midspan delivers a power output of 90 W. With portcast technology it enables both audio and I/O connectivity to your Axis PTZ cameras. Plus, with an SFP port, it supports both network and fiber installations.

Add connectivity

With AXIS TU8003 you can easily add two-way audio and I/O connectivity to your cameras. With portcast technology, this midspan uses the camera’s IP address to provide seemingly camera-integrated audio and I/O connectivity. This enables audio and video in one stream over the network with no extra VMS license. Plus, it supports both digital and unbalanced microphones.

Add power possibilities

AXIS TU8003 deliveries up 90 W and can be used to power selected PTZ cameras. Featuring a built-in SFP slot, it is perfect for long-distance installations. And, with remote on/off functionality with I/O, it's possible to save power if needed. Furthermore, this 90 W midspan is compatible with IEEE 802.3bt, IEEE 802.3af (15 W), IEEE 802.3at and Axis High PoE.



Viktiga egenskaper

Axis TU8003. Type: Midspan, Placement supported: Universal, Brand compatibility: Axis. Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000 Mbit/s. Rated power: 90 W, Input voltage: 100-240 V, Input frequency: 50/60 Hz. Cable length: 1.8 m, Width: 80 mm, Depth: 184 mm



Teknisk specifikation

Type	Midspan
Placement supported	Universal
Brand compatibility	Axis
Compatibility	Q6074-E PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6135-LE PTZ, Q6225-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ, P3735-PLE, P3737-PLE, P3738-PLE
Product colour	White
Networking standards	IEEE 802.3bt
LED indicators	Yes
Certification	UL/cUL, BIS, CE, KC, VCCI, RCM, TAA

Connectivity technology	Wired
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Rated power	90 W
Input voltage	100-240 V
Input frequency	50/60 Hz
Output voltage	54 V

Cable length	1.8 m
Width	80 mm
Depth	184 mm
Height	56 mm
Weight	415 g

Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	10 - 85 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %

Doesn't contain	PVC
Compliance certificates	REACH,RoHS
