Produktbeskrivning

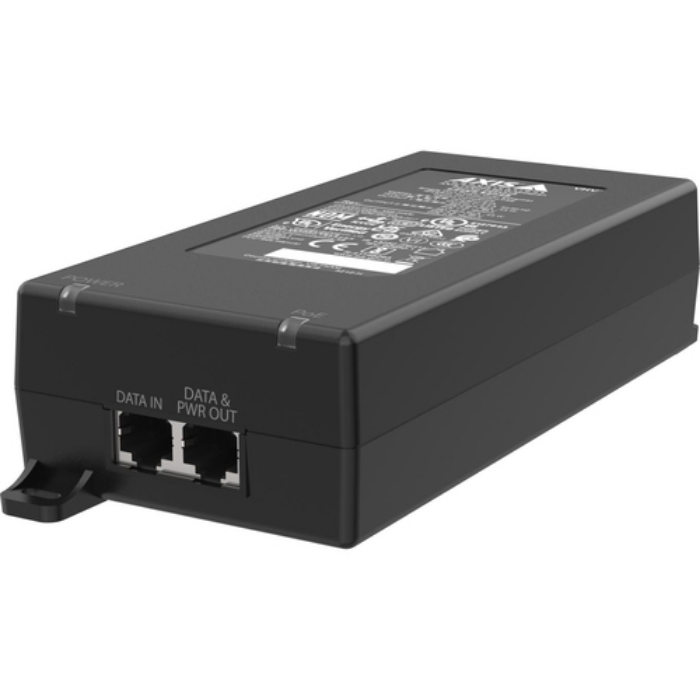

AXIS TU8004 90 W Midspan

AXIS TU8004 is a single port 90 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS TU6011 Mains Cable is sold separately. The midspan can be installed on a wall, shelf or DIN rail with AXIS T91A03 DIN Rail Clip A.



Viktiga egenskaper

Axis TU8004. Type: Midspan, Brand compatibility: Axis, Product colour: Black. Connectivity technology: Wired, Number of outputs: 1 outputs, Number of inputs: 1 inputs. Rated power: 90 W, Input voltage: 100 - 240 V, Input frequency: 50/60 Hz. Width: 80 mm, Depth: 166 mm, Height: 44 mm



Teknisk specifikation

Type	Midspan
Brand compatibility	Axis
Product colour	Black
Housing material	Plastic
Networking standards	IEEE 802.3af,IEEE 802.3bt
Certification	IS 13252, IEC/EN/UL 62368-1, CCC, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC, RCM AS/NZS CISPR 32, VCCI, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2

Connectivity technology	Wired
Number of outputs	1 outputs
Number of inputs	1 inputs
Ethernet LAN data rates	10,100,1000,2500,5000 Mbit/s
Ethernet LAN	Yes

Rated power	90 W
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Output voltage	57 V
Power consumption (typical)	64.3 W
Power consumption (max)	91.7 W
Power source type	PoE

Depth	166 mm
Height	44 mm
Width	80 mm
Weight	500 g

Quick installation guide	Yes

Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90 %

Doesn't contain	Halogen,PVC
