Produktbeskrivning

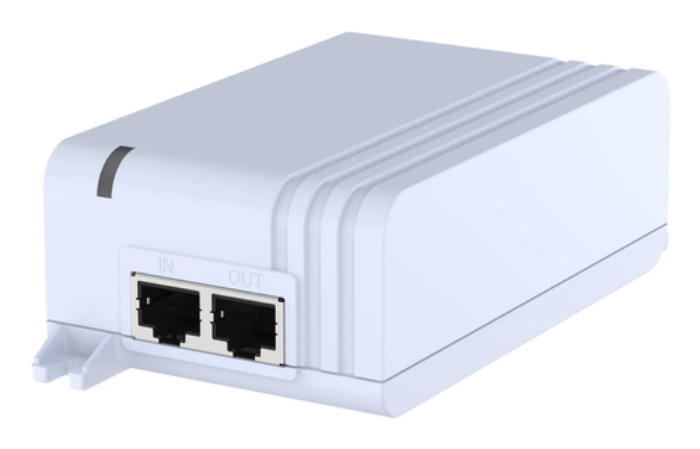

AXIS TU8006 is a single port 60 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast, and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data into the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS TU6011 Mains Cable is sold separately. The midspan can be installed on a wall, shelf or DIN rail with AXIS T91A03 DIN Rail Clip A.



Viktiga egenskaper

Axis TU8006. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: White. Power over Ethernet (PoE) voltage: 56 V, Output power: 60 W, Input voltage: 100 - 240 V. Weight: 235 g. Number of products included: 1 pc(s)



Teknisk specifikation

Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+,PoE++ (4PPoE)
Networking standards	IEEE 802.3bt

Product colour	White
Wall mountable	Yes
LED indicators	Yes

Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
DC-in jack	Yes

Power over Ethernet (PoE) voltage	56 V
Output power	60 W
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz

Operating temperature (T-T)	-10 - 45 °C
Operating temperature (T-T)	14 - 113 °F
Operating relative humidity (H-H)	0 - 90 %
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 %

Weight	235 g

Number of products included	1 pc(s)
Manual	Yes
