Produktbeskrivning

Designed for use in hazardous areas, this kit is ideal for industrial applications in dry, wet, or damp locations. It enables secure connection of an explosion-protected device to AXIS TX1401 Fiber Optic Cable Splice Box.  

Secure connections in hazardous areas 

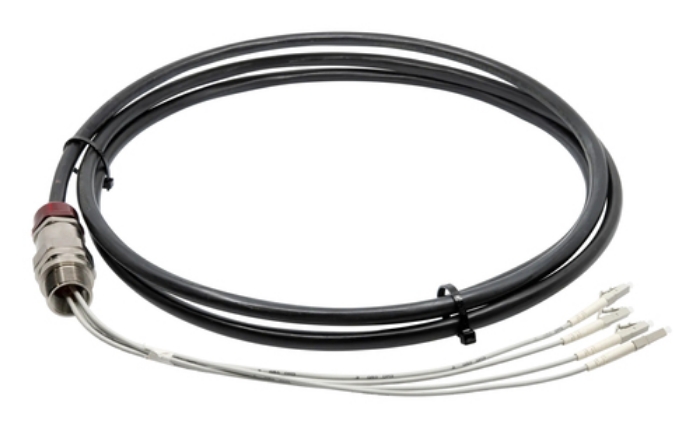

This multimode fiber optic cable kit includes a halogen-free and flame-retardant breakout cable (5 m (16.4 ft) or 10 m (32.8 ft)), that can withstand mechanical stress. It also comes with an Ex d barrier gland which allows you to insert the breakout cable directly into flameproof enclosures, providing a safe and reliable solution for hazardous environments. The kit also includes an M25-to-M20 cable gland adapter. What’s more, it complies with IEC EN 60079-14 requirements for cable installation and wiring in hazardous areas.



Viktiga egenskaper

Axis TX1203. Cable length: 5 m, Cable type: LC, Fibre optic type: OM3, Connector 2: 4x LC, Core diameter: 50 µm



Teknisk specifikation

Cable length	5 m
Cable type	LC
Fibre optic type	OM3
Cable shape	Round
Connector 1	No
Connector 2	4x LC
Connector 2 gender	Male
Connector 1 gender	No
Product colour	Black
Core diameter	50 µm
Cladding diameter	125 µm
Fiber mode structure	Multi-mode
Wavelengths supported	1300,850 nm
Ethernet interface type	10 Gigabit Ethernet
Jacket material	Low smoke zero halogen (LSZH)

Doesn't contain	Halogen,PVC,Brominated Flame Retardant (BFR),CFR
Compliance certificates	IECEx,ATEX,cULus,UL,PESO,CCC,RoHS,REACH

Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-25 - 70 °C

Cable diameter	10.4 mm
Weight	550 g
Bending radius	160 mm

Quantity per pack	1 pc(s)

Attenuation (max)	2.8 dB/km
