Produktbeskrivning

Designed for use in hazardous areas, this kit is ideal for industrial applications in dry, wet, or damp locations. It enables secure connection of an explosion-protected device to AXIS TX1401 Fiber Optic Cable Splice Box.  

Secure connections in hazardous areas 

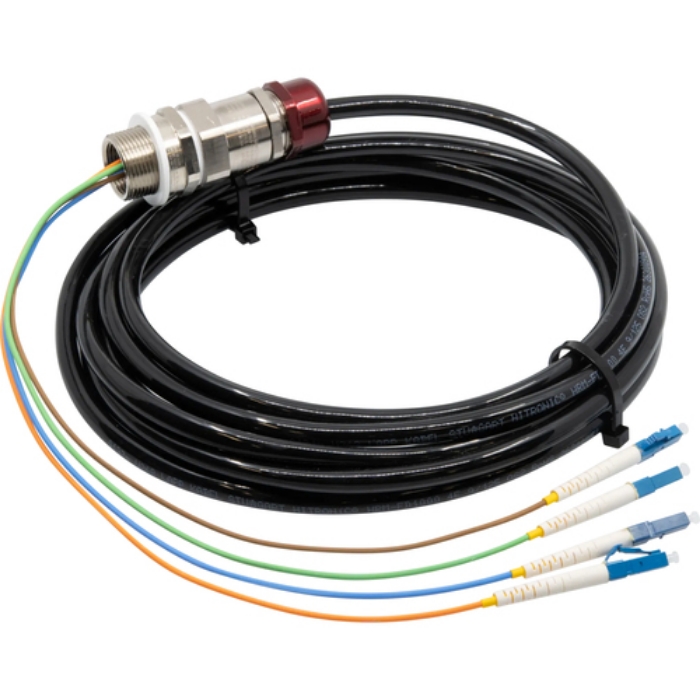

This single mode fiber optic cable kit includes a halogen-free and flame-retardant breakout cable (5 m (16.4 ft) or 10 m (32.8 ft)), that can withstand mechanical stress. It also comes with an Ex d barrier gland which allows you to insert the breakout cable directly into flameproof enclosures, providing a safe and reliable solution for hazardous environments. The kit also includes an M25-to-M20 cable gland adapter. What’s more, it complies with IEC EN 60079-14 requirements for cable installation and wiring in hazardous areas.



Viktiga egenskaper

Axis TX1204. Cable length: 5 m, Cable type: LC, Fibre optic type: OS2, Connector 2: 4x LC, Core diameter: 9 µm



Teknisk specifikation

Cable length	5 m
Cable type	LC
Fibre optic type	OS2
Cable shape	Round
Connector 1	No
Connector 2	4x LC
Connector 1 gender	No
Connector 2 gender	Male
Product colour	Black
Core diameter	9 µm
Cladding diameter	125 µm
Fiber mode structure	Single-mode
Wavelengths supported	1260 nm
Jacket material	Low smoke zero halogen (LSZH),Polyurethane (PUR)

Compliance certificates	IECEx,ATEX,cULus,UL,PESO,CCC,RoHS,REACH
Doesn't contain	Halogen,PVC,Brominated Flame Retardant (BFR),CFR

Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 70 °C

Cable diameter	7.8 mm
Weight	450 g

Quantity per pack	1 pc(s)
