Produktbeskrivning

Designed for explosion-protected environments, this robust Ex e certified junction box includes everything needed for secure and efficient fiber optic connections in hazardous areas.

Complete, durable solution

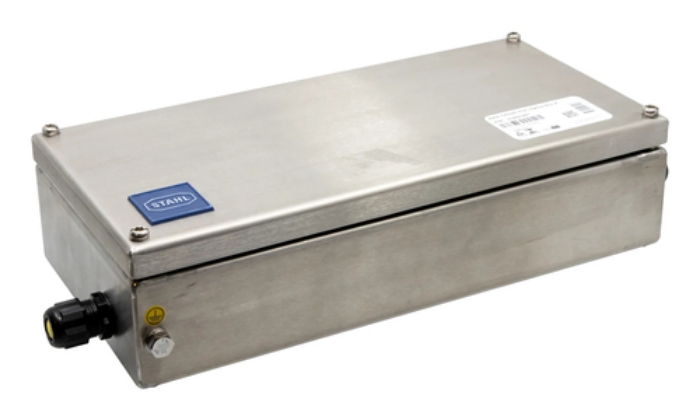

With a stainless steel protective enclosure, this durable solution includes everything you need for secure and efficient fiber optic installations in hazardous areas. It comes with two cable glands for cable entry protection. The included splice cassette protects and organizes fiber connections, connecting multicore fiber cables with Axis Fiber Optic breakout cables for secure integration with explosion-protected devices.

For demanding applications
Designed for fiber optic installations in Zone 1 and 2, this Ex e certified junction box is ideal for demanding applications and hazardous areas with potentially explosive gas or dust atmospheres. It’s certified to ATEX, IECEx, and INMETRO standards for use in areas with potentially explosive atmospheres.



Viktiga egenskaper

Axis TX1401. Product colour: Grey, Housing material: Stainless steel, International Protection (IP) code: IP66. Compliance certificates: RoHS, REACH, ATEX, IECEx, INMETRO. Doesn't contain: PVC, Brominated Flame Retardant (BFR), CFR. Width: 360 mm, Depth: 176.5 mm, Height: 91 mm



Teknisk specifikation

Number of splice trays supported (max)	6

Product colour	Grey
Housing material	Stainless steel
Suitable for outdoor use	Yes
International Protection (IP) code	IP66

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Doesn't contain	PVC,Brominated Flame Retardant (BFR),CFR
Compliance certificates	RoHS,REACH,ATEX,IECEx,INMETRO

Width	360 mm
Depth	176.5 mm
Height	91 mm
Weight	4900 g
