Produktbeskrivning

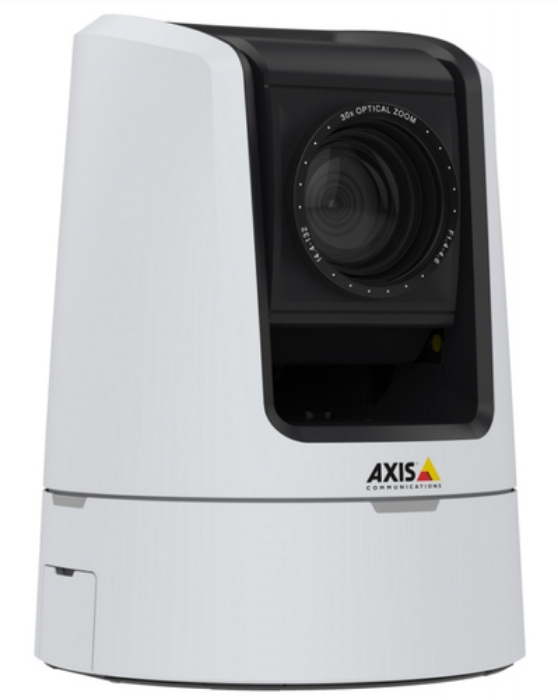

AXIS V5925 combines excellent image quality with smooth PTZ control and broadcast-quality audio for professional webcasting. It’s compatible with VISCA joysticks and VISCA over IP, making it easy to integrate with your existing AV installations. Offering enhanced security features such as signed firmware and secure boot, it ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. NDI® compliant (license to be bought separately).



Viktiga egenskaper

Axis 01965-002. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 62°, Lens viewing angle, vertical: 37°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Digital zoom: 12x, Focal length range: 4.4 - 132 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Preset points	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Alarm input/output	Yes
Certification	55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A , KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
Housing material	Plastic
Fog proof	Yes

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.03 lx
Lens viewing angle, horizontal	62 °
Lens viewing angle, vertical	37 °
Tilt angle range	-20 - 90 °
Tilt speed	90 °/sec
Pan range	-170 - 170 °
Pan speed	100 °/sec
Camera shutter speed	1/10000 - 1 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Optical zoom	30 x
Digital zoom	12 x
Focal length range	4.4 - 132 mm
Auto focus	Yes
Minimum aperture number	1.4
Maximum aperture number	4.6

Maximum resolution	1920 x 1080 pixels
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions	160 x 90,1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	60 fps
Video streaming	Yes
Text caption overlay	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Saturation,Sharpness

Audio formats supported	AAC-LC,ADPCM,LPCM
Sample rate	48 kHz

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/v6, HTTP, HTTP/2, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog, HDMI 1.4, 3G-SD
Quality of Service (QoS) support	Yes
Streaming method	Multicast

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB

Ethernet LAN (RJ-45) ports	1
RS-232 ports	1
Microphone in	Yes
Terminal block port	Yes

Password protection	Yes
IP address filtering	Yes
Video motion detection	Yes
HTTPS encryption	Yes
Security algorithms	802.1x RADIUS

Power source type	DC
Power consumption (typical)	14 W
Power consumption (max)	25 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	10 - 85 %

Width	136 mm
Depth	136 mm
Height	180 mm
Weight	1500 g

Number of cameras	1
Manual	Yes

Harmonized System (HS) code	85258900
