Produktbeskrivning

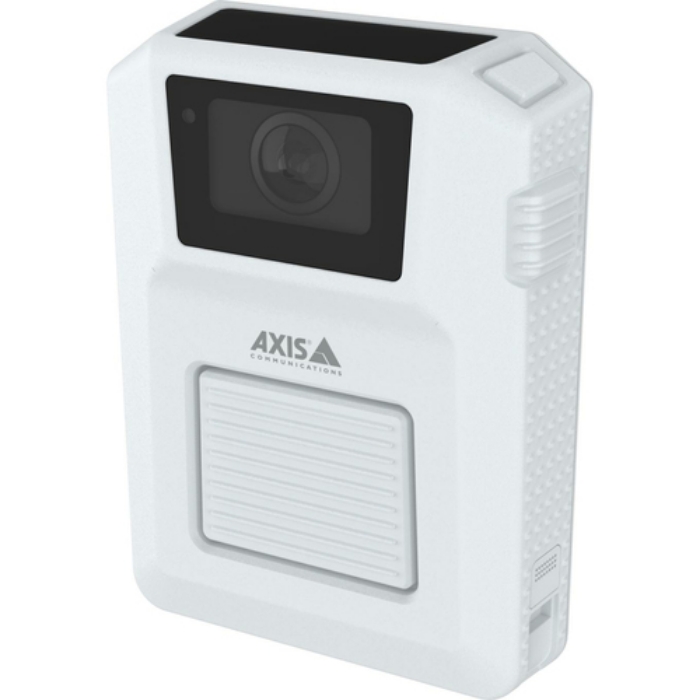

AXIS W102 Body Worn Camera empowers and protects officers and guards with effortless support and excellent forensic evidence all day. Get a new end-to-end Axis solution, or use an existing Axis solution, or a third-party VMS or EMS. It’s your choice.

AXIS W102 has your back – all day
When the shift starts, use the self-assign option, or grab a preassigned camera, mount it wherever you like, and go. If you draw a weapon or take a tumble, the camera records automatically. Or you can activate it with the tap of an oversize button. It buffers for up to 120 seconds and can trigger nearby cameras via Bluetooth®. So, you’ll capture the entire incident from every angle. Plus, you can stream video back to headquarters via Wi-Fi® or mobile hotspot with AXIS Body Worn Live. Then, at the end of the day, just return AXIS W102 to the docking station. It’s that easy. And offloading to your management system is fast, reliable, secure, and 100% automatic.

Every detail – your way
Robust, waterproof AXIS W102 captures sharp, detailed images and clear audio with advanced noise and wind suppression. Long battery life and on-the-go charging mean it’s always ready to record. And you decide how to manage video evidence – while protecting the value of your existing investments. Choose an end-to-end solution with AXIS Camera Station VMS. Use your current Axis solution. fOr, use a third-party VMS or EMS – on-site or in the cloud. Open architecture means integration is easy. Plus, cost-efficient docking stations and a separate system controller make scaling up just as simple anytime you need to.

When cybersecurity matters
This camera features cybersecurity provisions that are second to none. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Data at rest and in-transfer is encrypted with AES 256 and HTTPS with, respectively. And only authorized software works, thanks to secure boot. AXIS W102 is also CJIS compliant and lives up to official FBI standards for cybersecurity. On top of all that, for live streaming, you get full end-to-end XChaCha20-Poly1305 encryption.



Viktiga egenskaper

Axis W102. Sensor type: CMOS, Maximum resolution: 1920 x 1080 pixels, Minimum illumination: 0.1 lx. Product type: Torso body camera, Housing colour: White, Housing material: Plastic. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi frequency: 2.4 GHz. Connectivity technology: Wireless, USB port type: USB Type-C. Internal memory: 64 GB, Display diagonal: 2.44 cm (0.96"), Display resolution: 160 x 80 pixels



Teknisk specifikation

Sensor type	CMOS
Optical sensor size	1/2.9 "
Maximum resolution	1920 x 1080 pixels
Minimum illumination	0.1 lx
Supported video modes	720p,1080p
Supported graphics resolutions	1280 x 720,1920 x 1080
Resolution at capture speed	1280x720@30fps,1920x1080@30fps
Field of view (FOV) angle	137 °
Vertical field of view	76 °
Camera shutter speed	1/20000 s
Fixed focal length	2.3 mm
LED type	IR
Wide Dynamic Range (WDR)	Yes
Night vision	No
Image stabilizer	Yes
Image stabilizer type	Electronic Image Stabilization (EIS)
Maximum frame rate	30 fps

Product type	Torso body camera
Housing colour	White
Housing material	Plastic
International Protection (IP) code	IP67
LED indicators	Status
Control type	Buttons
On/off button	Yes

Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Wi-Fi frequency	2.4 GHz
Bluetooth	Yes
Bluetooth version	5.1

Connectivity technology	Wireless
USB port	Yes
USB port type	USB Type-C

Internal memory	64 GB
Built-in display	Yes
Display diagonal	0.96 "
Display resolution	160 x 80 pixels

Built-in microphone	Yes
GLONASS	Yes
GPS (satellite)	Yes
Video compression formats	H.264
Voice codecs	AAC
Accelerometer	Yes
Gyroscope	Yes

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3600 mAh
Battery life (max)	14.1 h

Width	68 mm
Depth	94 mm
Height	27 mm
Weight	178 g

Operating temperature (T-T)	-20 - 55 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Compliance certificates	BIS,BSMI,CE,Federal Communications Commission (FCC),ICES,KC,MIC,NCC,Norma Oficial Mexicana (NOM),RCM,State Radio Regulation of China (SRRC),Trade Agreements Act (TAA),UL,VCCI,WEEE,cUL,IFT
Warranty period	3 year(s)

Quantity per pack	1 pc(s)
