Produktbeskrivning

Certified for Zone 1/Division 1 hazardous areas, this all-in-one network speaker system enables clear, understandable voice messages to personnel. Easy to integrate, it offers a flexible, scalable, and cost-effective solution.

Clear audio to reach your personnel – everywhere

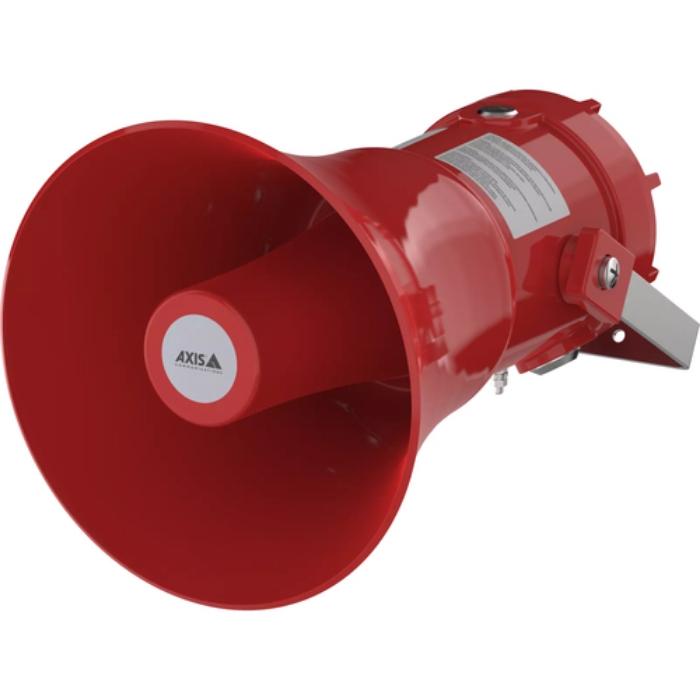

AXIS XC1311 makes it easy for you to get scheduled, event-triggered, and live voice messages to personnel in hazardous areas, improving their situational awareness when it counts. For example, whenever a camera with analytics detects smoke or missing personal protective equipment, this smart device can be automatically or manually triggered to play a prerecorded message. Or, in response to a system alert, a remote operator can issue live instructions directly to the scene. Messages come through loud and clear – even over long distances and in noisy industrial environments – thanks to the horn and built-in digital signal processing.

A smart solution
This all-in-one network audio device plugs into standard IP networks, enabling a flexible, scalable, and cost-effective approach to system design. It’s a stand-alone unit, so you don’t need any additional hardware or software. It integrates seamlessly with the rest of the Axis portfolio and – thanks to the Axis open platform – other systems, solutions, and platforms. Plus, you can monitor and manage it from anywhere. Built-in remote health testing means you won’t need to go on-site to know it’s working, and AXIS Audio Manager Edge comes preinstalled so you can remotely set and prioritize content, configure zones, and revise user permissions.

Easy to install and configure in hazardous areas
AXIS XC1311 is certified worldwide for use in hazardous areas (Class I Div 1, Zone 1 IIC), so it can be installed in potentially combustible environments* and withstand temperatures between -40 °C to 60 °C (-40 °F to 140 °F). This smart network horn speaker is easy to install. Because it uses Power over Ethernet (PoE), it connects to the closest network switch with a single cable for both power and connectivity – no additional cabling or hardware required. Additionally, the included bracket supports both wall and ceiling mounting. It’s also a snap to set up, thanks to the preinstalled audio management software and preconfigured sound quality.

* Certified for gas environments Class I Div 1 (Group ABCD), Class I Zone 1 IIC, Zone 1 IIC, and dust environments Zone 21 IIIC (worldwide)



Viktiga egenskaper

Axis XC1311. Speaker type: 1-way. Connectivity technology: Wired. Frequency range: 400 - 5500 Hz. Product colour: Red



Teknisk specifikation

Speaker type	1-way
Speaker placement	Ceiling-mountable,Wall-mountable,Pole-mountable

Frequency range	400 - 5500 Hz
Sound pressure level (max)	110 dB
Audio formats supported	AAC-LC,ADPCM,G.711,G.711 μ-law,G.726,MP3,PCM,WAV

Product colour	Red
Number of speakers	1
Housing material	Aluminium
International Protection (IP) code	IP66, IP67
LED indicators	Yes
Suitable for outdoor use	Yes

Amplifier	Built-in
Amplifier class	D
Amplifier output power	7 W

Connectivity technology	Wired
Bluetooth	No

Power source type	PoE
Power consumption (typical)	7 W

Width	220 mm
Depth	335 mm
Height	255 mm
Weight	4220 g

Manual languages	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR

Quantity per pack	1 pc(s)
Quick start guide	Yes

Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	-40 - 60 °C

Doesn't contain	PVC

Warranty period	5 year(s)
Compliance certificates	ATEX,Electromagnetic Compatibility (EMC),Federal Communications Commission (FCC),IECEx,REACH,RoHS,Trade Agreements Act (TAA),cULus

Networking standards	IEEE 802.3af,IEEE 802.3at
Ethernet LAN (RJ-45) ports	1
Protection features	Impact resistant
Power consumption	12.95 W
