Produktbeskrivning

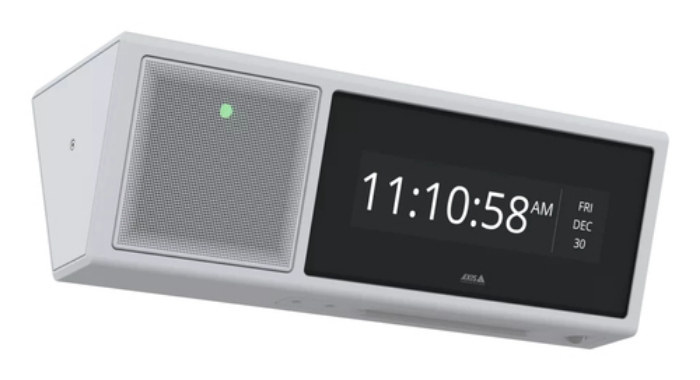

Reach even more people with a versatile tool for effective public address. This dual-sided indoor device, perfect for wall or ceiling mounting in corridors, combines two powerful speakers, two displays for text, and a configurable strobe bar.

Public address with a bigger reach

To ensure clear messaging even in busy corridors, AXIS C1720 Network Display Speaker offers three ways to communicate in one device. The strobe grabs attention, and the powerful speakers cut through ambient noise with clear speech and, when needed, loud alarms. The easy-to read text display automatically adjusts to surrounding light levels. This speaker enables both live and prerecorded messages, as well as ad hoc and scheduled strobes and text. Content prioritization guarantees urgent messages override scheduled audio, while remote health monitoring and testing give you peace of mind that your speakers are working.

One solution, many possibilities

This flexible display speaker is ideal for both critical and non-critical messages, helping you keep people safe and informed, protect your property, and improve efficiency and ambiance. The same solution can broadcast bell signals, alarms, and background music. When not in use, the display shows the date and time. You can also configure the display speaker to respond automatically to events using the built-in motion detector. For even more possibilities, integrate cameras or other Axis devices, or leverage the open platform to integrate third-party solutions – for example, mass notification systems.

Made with you in mind

Mix and match speaker, strobe, and display functions and manage them the way you want. Make announcements from your communication hub or on the go, using a SIP-enabled phone. Need two-way communication? Open a line for two-way audio and speak to the scene. Instantly change content, schedules, zones, and prioritization using Axis audio management software. The size and styling of display text is up to you, and you can customize the strobe color and pattern for different alerts. Getting started is easy. Speakers are preconfigured for great sound, and safety features make installation a snap, whether you choose AXIS TC1604 Wall Mount or AXIS TC1605 Ceiling Mount accessories



Viktiga egenskaper

Axis C1720. Speaker type: 2-way, Speaker placement: Ceiling-mountable, Pole, Internal memory: 1024 MB. Frequency range: 180 - 15500 Hz, Sound pressure level (max): 99 dB, Amplifier class: D. Product colour: Black, White, Housing material: Aluminium, Plastic, Steel, Display type: LCD. Connectivity technology: Wired, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. Power source type: PoE



Teknisk specifikation

Speaker type	2-way
Built-in amplifier	Yes
Speaker placement	Ceiling-mountable,Pole
Number of speakers	1
Internal memory	1024 MB
Flash memory	1024 MB
Built-in microphone	Yes
Two-way talk	Yes
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,MP3,WAV
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %

Frequency range	180 - 15500 Hz
Sound pressure level (max)	99 dB
Amplifier class	D
Amplifier output power	20 W
Audio processing technologies	Acoustic echo cancellation (AEC)
Dispersion pattern	280 °

Product colour	Black,White
Housing material	Aluminium,Plastic,Steel
Suitable for outdoor use	No
Built-in display	Yes
Display type	LCD
LED indicators	Yes
International Protection (IP) code	IP40

Connectivity technology	Wired
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
USB 2.0 Type-A ports quantity	1
3.5 mm connector	Yes

Power source type	PoE

Width	160 mm
Depth	462 mm
Height	156 mm
Weight	4700 g

Quantity per pack	1 pc(s)

Languages support	Multi

Supported network protocols	IPv4/IPv61, USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/2, TLS2, QoS Layer 3 DiffServ, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, ARP, SSH,
