Produktbeskrivning

Specifically designed for onboard surveillance, this easy-to-install camera delivers a complete 180° or 360° overview regardless of light conditions. Built-in cybersecurity features help prevent unauthorized access and safeguard your system.

Optimized for the transportation industry

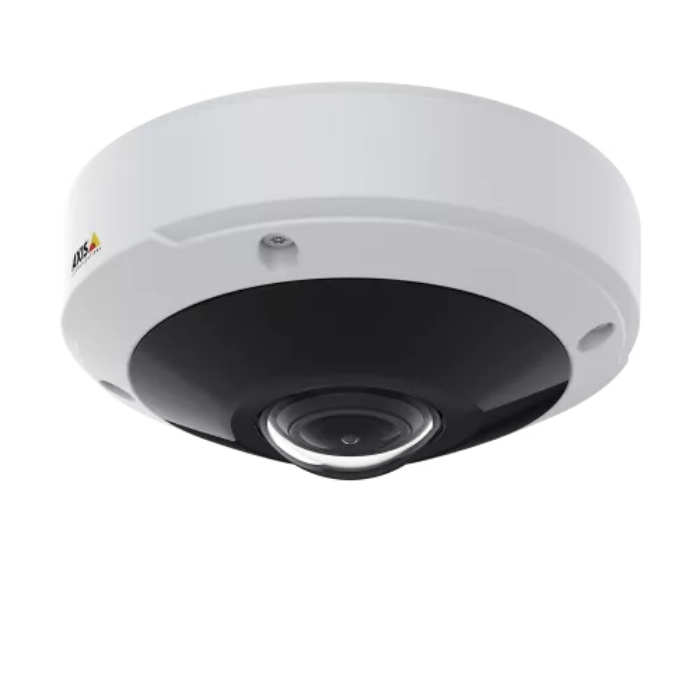

Specifically designed for onboard surveillance, AXIS M3057-PLR Mk II complies with transportation industry standards including EN50155 and EN45545-2. Including an M12 connector, it can withstand vibrations ideal for installation in trains and buses. This ruggedized IK10, IP66/67-rated camera can withstand harsh environments. Plus, an active tampering alarm lets you know if your camera has been tampered with. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

See everything 24/7
This 6 MP panoramic camera offers 360° wide area coverage with just one camera. Ideal for onboard surveillance, you can use one video stream to produce any dewarped views you'd like. It’s possible to stream panorama, quad, corner, and corridor views directly from the camera. And you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously. Including Axis Lightfinder, it ensures sharp color images in low light. Plus, Forensic WDR delivers clarity even when there’s both dark and light areas in the scene. Furthermore, thanks to Axis OptimizedIR it enables surveillance in total darkness.

Built-in cybersecurity features
AXIS M3057-PLR Mk II comes with built-in cybersecurity functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.



Viktiga egenskaper

Axis M3057-PLR. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 360°, Lens viewing angle, horizontal: 183°, Lens viewing angle, vertical: 183°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Fixed focal length: 1.56 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes

Form factor	Dome
Mounting type	Ceiling
Product colour	White
International Protection (IP) code	IP66, IP67
IK code	IK10

Minimum illumination	0 lx
Field of view (FOV) angle	360 °
Lens viewing angle, horizontal	183 °
Lens viewing angle, vertical	183 °
Camera shutter speed	1/16000 - 1 s

Sensor type	CMOS
Optical sensor size	1/1.8 "
Progressive scan	Yes

Fixed focus	Yes
Minimum aperture number	2
Fixed focal length	1.56 mm

Night vision	Yes
Night vision distance	20 m
Infra-red wavelength	850 nm

Maximum resolution	2016 x 2016 pixels
Total megapixels	6 MP
Video compression formats	H.264,H.265,M-JPEG
Supported graphics resolutions	2560 x 1440,2560 x 1920,384 x 288,1920 x 1440,256 x 144
Frame rate	60 fps
Video streaming	Yes

Wi-Fi	No
Bluetooth	No
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS1 , HTTP/ 2, SSL/TLS1 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, IGMPv1/v

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
RAM capacity	1024 MB

Security algorithms	AES,FIPS 140-3

Cloud-managed	Yes

Power source type	PoE
Power consumption (max)	12.2 W
Power consumption (Power over Ethernet (PoE))	8.2 W

Operating temperature (T-T)	-40 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	66 mm
Diameter	149 mm
Weight	760 g

Number of cameras	1
Mounting brackets included	Yes
Drilling template included	Yes
