Produktbeskrivning

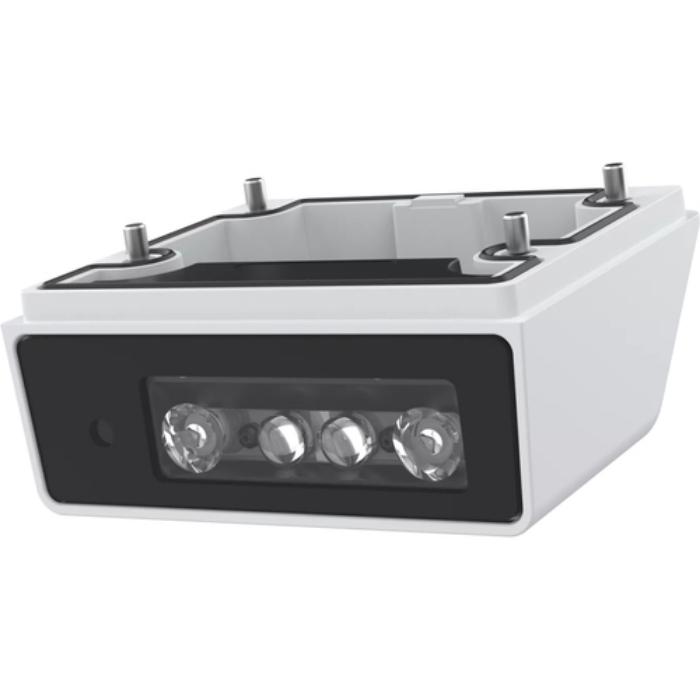

AXIS TQ1937-E IR Illuminator Kit has a powerful IR and is designed to fit AXIS Q16 Series and AXIS P13 Series. The improved IR has four lenses: two wide-angle lenses for zoomed-out views and two tele lenses for zoomed-in views. This kit is optimized for traffic use cases and ensures accurate license plate reading. It enables cost-efficient surveillance in pitch darkness and includes power-efficient, long-life 850 nm IR with a range of reach of 50 m (164 ft). The IP66/IP67 and IK10-rated IR can easily be mounted on the bottom of the outdoor models in AXIS Q16 Series and AXIS P13 Series.

AXIS TQ1937-E IR Illuminator Kit is included in AXIS Q1686-DLE.



Viktiga egenskaper

Axis TQ1937-E. Type: Illuminator, Placement supported: Outdoor, Brand compatibility: Axis. Input voltage: 5.3 V, Power consumption (typical): 2 W, Power consumption (max): 4.1 W. Width: 100 mm, Depth: 80 mm, Height: 40 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Type	Illuminator
Placement supported	Outdoor
Brand compatibility	Axis
Compatibility	AXIS P1375-E Network Camera AXIS P1377-LE Network Camera AXIS P1378-LE Network Camera AXIS P1385-E Network Camera AXIS P1385-BE Network Camera AXIS P1387-BE Network Camera AXIS P1387-LE Network Camera AXIS P1388-BE Network Came
Product colour	Black,White
Housing material	Aluminium,Polycarbonate (PC)
IK code	IK10

Input voltage	5.3 V
Power consumption (typical)	2 W
Power consumption (max)	4.1 W

Height	40 mm
Weight	294 g
Depth	80 mm
Width	100 mm

Quantity per pack	1 pc(s)

Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %

Compliance certificates	Electromagnetic Compatibility (EMC),Federal Communications Commission (FCC),ICES,RCM,REACH,RoHS,UL
Doesn't contain	BFR,CFR,PVC
