Produktbeskrivning

Ideal for installations where it's difficult to add power, this PoE extender connects to existing infrastructure and offers an easy way to extend PoE connectivity with up to 100 m range. It can power up two 30 W devices or one 60 W.

Extend your system

This PoE extender can extend the connection between your PoE switch and a 60 W Axis device supporting IEEE 802.3bt up to 100 m (328 ft). It offers flexible installation, and it can be placed in areas where plenum rating is required. Furthermore, this PoE Extender can withstand temperatures between -40 °C to 65 °C (-40 °F to 149 °F). When installed in an IP66-rated Axis surveillance cabinet it becomes weatherproof and vandal resistant.

Expand your system

With AXIS TU8010 you can also connect two 30 W Axis devices, reducing costs and installation time, as well as minimizing port usage in the switch. Furthermore, this PoE Extender requires IEEE 802.3bt Type 4 Class 8 for full functionality but can also work with IEEE Type 3 Class 6 with a more limited power output.



Viktiga egenskaper

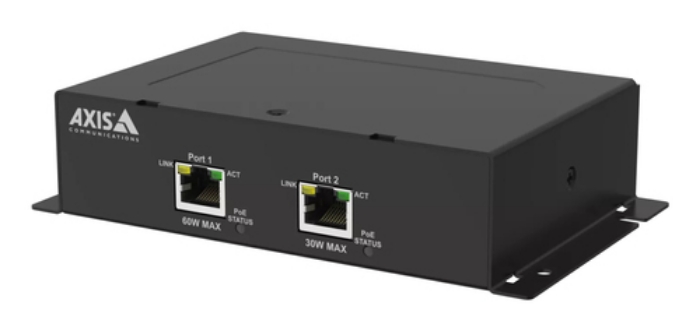

Axis TU8010. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Housing material: Metal, Maximum operating distance: 100 m. Output power: 60 W, Power over Ethernet (PoE) power per port: 30 W, Total Power over Ethernet (PoE) budget: 60 W. Certification: UL/cUL, CE, KC, VCCI, RCM, NOM, C, BSMI. Weight: 550 g



Teknisk specifikation

Ethernet interface type	Fast Ethernet,Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE,PoE+,PoE++ (4PPoE)
Networking standards	IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
Cable types supported	Cat5e,Cat6,Cat6+,Cat6a,Cat7

Product colour	Black
Housing material	Metal
Wall mountable	Yes
Rack mounting	Yes
Plug and Play	Yes
Maximum operating distance	100 m
LED indicators	Yes
Safety	BSMI-mark, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, KC-mark, NOM-001, UL 2043 (plenum rated)
Certification	UL/cUL, CE, KC, VCCI, RCM, NOM, C, BSMI

Ethernet LAN (RJ-45) ports	3
RJ-45 input ports	1
RJ-45 output ports	2

Output power	60 W
Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE) power per port	30 W

Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	0 - 95 %

Weight	550 g

Number of products included	1 pc(s)
Quick installation guide	Yes

Warranty period	3 year(s)
