Produktbeskrivning

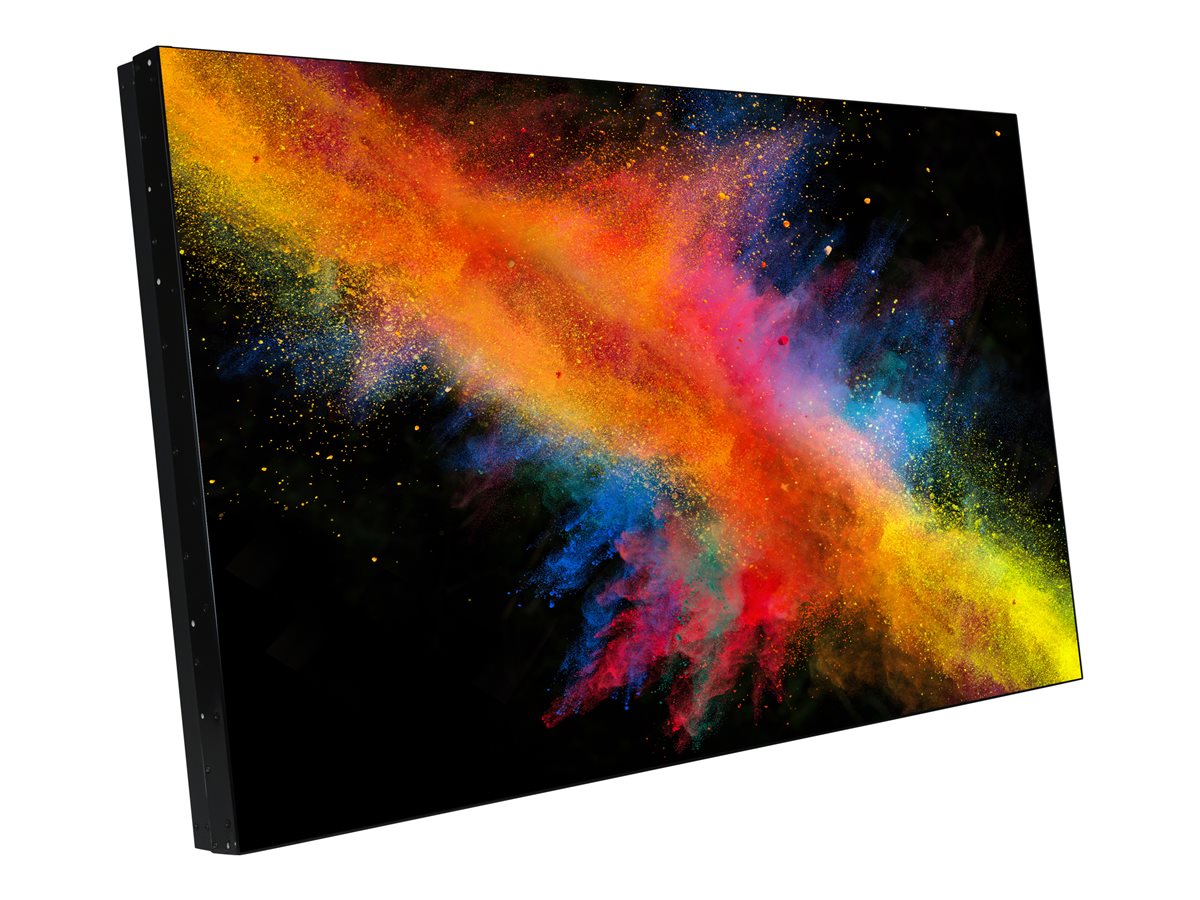

Barco's OverView KVD5521B is a high-performance, mid-level brightness (500 cd/m² typical) and cost optimized 55" LCD panel, dedicated for use in tiled video wall applications. With a bezel of 3.5 mm (0.14"), excellent colors and contrast, and a wide viewing angle, the OverView KVD5521B provides great value to entry-level and mid-end applications.
Egenskaper
Automatic color and brightness calibrationThe signature innovative Sense X - Barco's automatic, continuous and real-time color and brightness calibration system - ensures that the complete wall produces a perfectly balanced image at all times. The absence of cooling fans not only minimizes the noise production, but also ensures that no moving parts - which are susceptible to wear and have a limited lifetime - are used. Plus, the introduction of DisplayPort V1.2, enabling to feed 4 displays in loop-through with 4K@60Hz content, is very important for easy connection with a limited number of cables.
Modular approach for enhanced uptimeIn order to guarantee an optimal uptime, the KVD5521B platform has a number of features to both prevent downtime and to speed up servicing. The input boards and power supplies can be quickly removed from the display, so they can be easily maintained or replaced. The use of LCD Connect makes it much easier to control the video wall, further improving the user-friendliness.
Teknisk specifikation
Allmänt
| Typ av produkt | LED-bakgrundsbelyst, platt LCD-skärm |
|---|
| Energiförbrukning vid drift | 190 Watt |
|---|
| Diagonalklass | 55" |
|---|
| Kommersiell användning | Ja - digital skyltning |
|---|
| TV-tuner | Ingen mottagare |
|---|
| TV-mottagaravkänning | Nej |
|---|
| Videogränssnitt | HDMI |
|---|
| HDMI-portskvantitet | 2 portar |
|---|
| PC-gränssnitt | DisplayPort |
|---|
| Kylsystem | Fläktfritt |
|---|
| Bredd | 121.34 cm |
|---|
| Djup | 6.9 cm |
|---|
| Höjd | 68.42 cm |
|---|
| Vikt | 28 kg |
|---|
Display
| LCD-skärmteknik | IPS |
|---|
| Upplösning | 1920 x 1080 |
|---|
| Visningsformat | 1080p |
|---|
| Bildkvot | 16:9 |
|---|
| LCD-teknik för bakgrundsbelysning | Direktupplyst LED |
|---|
| Bildkontrastförhållande | 1400:1 |
|---|
| Ljusstyrka | 500 cd/m² |
|---|
| Bakgrundsbelysningens livslängd | 60,000 timme/timmar |
|---|
| Egenskaper | Utformad för användning 24/7 |
|---|
Nätverks- och Internet-multimedia
| Anknytningsbarhet | LAN |
|---|
Anslutningar
| Anslutningstyp | 2 x DisplayPort-inmatning
DisplayPort-utmatning
2 x LAN
2 x HDMI
2 x USB (endast ström) |
|---|
Strömtillförsel
| Nätdel | Nätaggregat |
|---|
| Inspänning | AC 120/230 V (50/60 Hz) |
|---|
Mått och vikt (brutto)
| Vikt (brutto) | 30.5 kg |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 40 °C |
|---|
| Luftfuktighet vid drift | 20 - 80 % (icke-kondenserande) |
|---|
