Produktbeskrivning

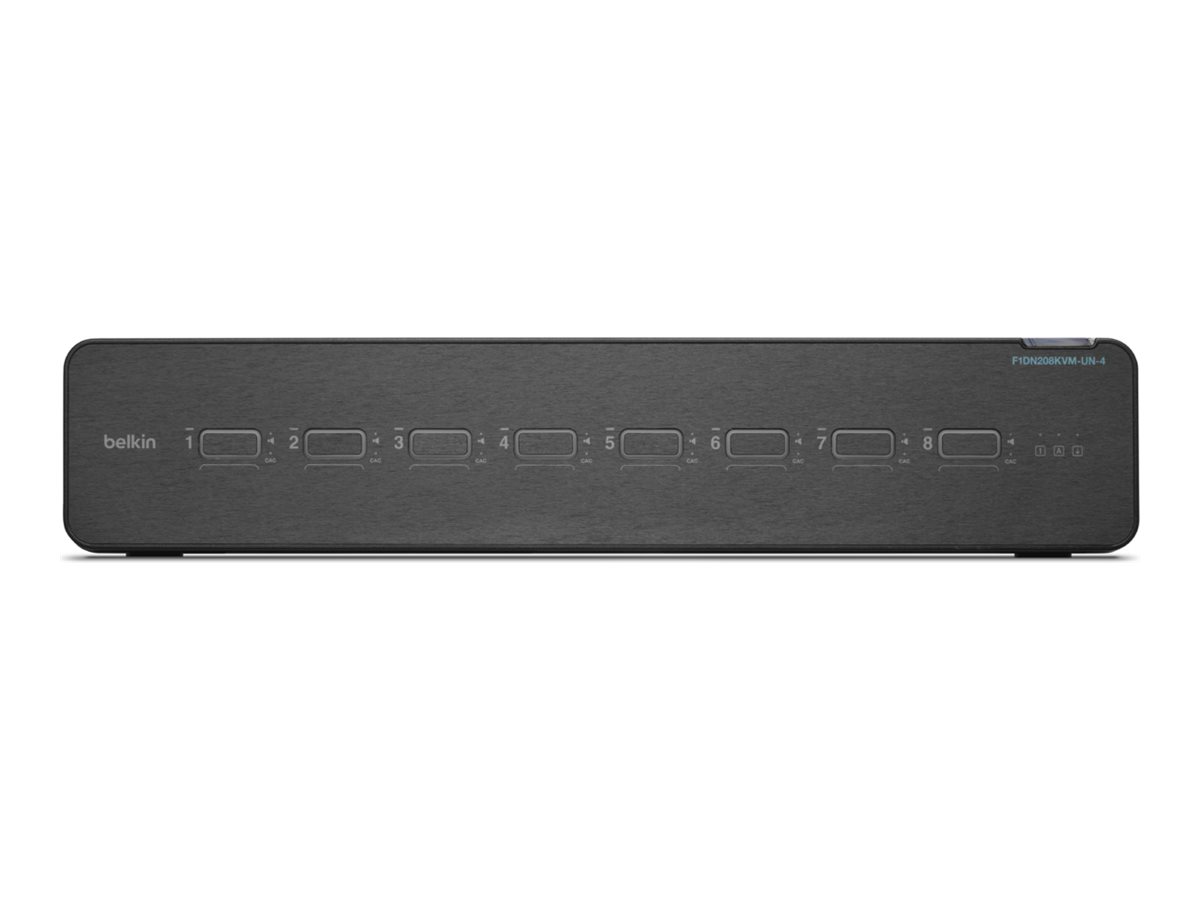

Ideal for highly sensitive applications that demand isolation between different network security enclaves. The Belkin Universal 2nd Gen Secure KVM switches utilize optical data diodes and peripheral emulation on each channel to help prevent data leakage between computers while maintaining strict air-gap isolation, even when sharing peripherals. An 8th order elliptical audio filter protects against ultrasonic attacks.
Egenskaper
● Combo connector video support for up to 4K (3840 x 2160) at 60Hz refresh
● Facilitates port identification and reduces user switching errors
● Supports TAA combo and video cables for easy deployment
● Supports up to eight host computers
● Supports two displays for the user
● Isolated port paths for video, audio, and peripherals prevent data leaks between computers
● Optical data diodes prevent peripherals from being used to breach systems
● Protected display interface prevents data leakage via the monitor
● Analog audio via 3.5mm jack with ultrasonic audio filtering
● USB device detection prevents unauthorized peripheral usage
● Holographic tamper-evident product label provides visual indication and prevention of tampering
Teknisk specifikation
Allmänt
| Typ av enhet | Omkopplare för tangentbord/video/mus/ljud - 8 portar |
|---|
| Modell | Skrivbordsmodell |
|---|
| Undertyp | KVM |
|---|
| Portar | 8 x KVM/ljud |
|---|
| Antal lokala KVM-användare | 1 lokal användare |
|---|
| Tangentbords-/musgränssnitt | USB |
|---|
| Max upplösning | 3840 x 2160 @ 60 Hz |
|---|
| Funktioner | CAC-läsarstöd (Common Access Card) |
|---|
| Statusindikatorer | Portstatus |
|---|
Expansion/Anslutning
| Gränssnitt | 16 x DisplayPort/HDMI-ingång
2 x DisplayPort/HDMI-utgång
8 x tangentbord (USB)/mus (USB) Type B
1 x tangentbord (USB) Type A
1 x mus (USB) Type A
1 x ljudutmatning mini-jack
8 x ljudinmatning mini-jack
8 x USB 2.0 Type B common access card (CAC)
1 x USB 2.0 Type A common access card (CAC)
1 x hantering RJ-25 |
|---|
Strömtillförsel
| Nätdel | Intern strömförsörjning |
|---|
| Installerat antal | 1 |
|---|
| Nätspänning | AC 120/230 V (50/60 Hz) |
|---|
Diverse
| Inkluderade tillbehör | Rackmonteringssats |
|---|
| Standarder som följs | FCC Klass B-certifierade, UL, RoHS, ICES, RCM, NIAP PP 3.0 |
|---|
| TAA-kompatibel | Ja |
|---|
Dimensioner och vikt
| Bredd | 43.69 cm |
|---|
| Djup | 20.57 cm |
|---|
| Höjd | 8.89 cm |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 3 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 40 °C |
|---|
| Luftfuktighet vid drift | 0 - 80% (icke-kondenserande) |
|---|
| Min temperatur vid förvaring | -20 °C |
|---|
| Max temperatur vid förvaring | 60 °C |
|---|
