Produktbeskrivning

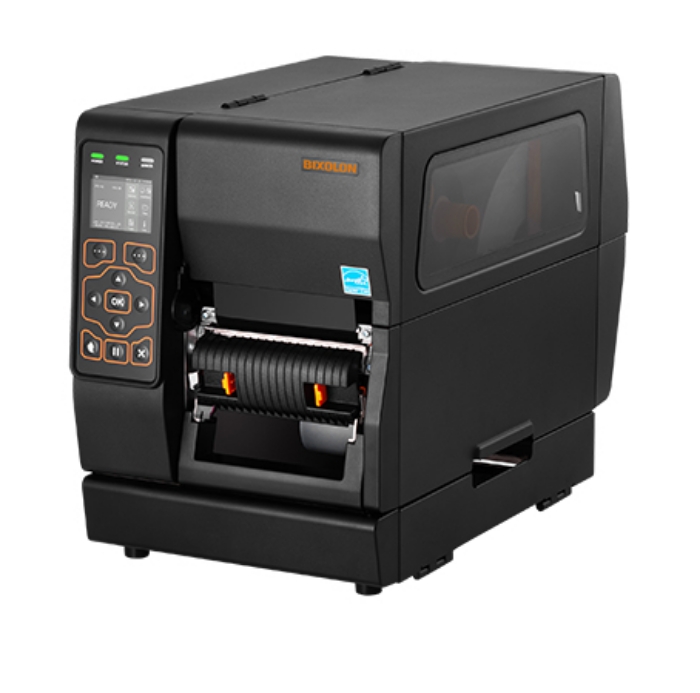

Adding a new entry-level 4-inch (114 mm) printing solution to BIXOLON's industrial label printer lineup, XT3-40 is designed with a familiar feel to the XT5-40 Series. The XT3-40 supports fast data processing and print speeds of up to 8 ips (203 mm/sec) at 203 dpi. Featuring a compact and robust design, double-holding door, and side-loading supplier path, the XT3-40 allows easy printer installation within narrow environments.
User-Friendly Design
- Compact and robust design
- Rugged all-metal case and double folding door
- Side-loading supplies path for simplified media and ribbon installation
- 2.4 inch full colour LCD display
- Peeler and Auto Cutter, and factory-installed Rewinder with Peeler options
- Toolless maintenance of roller and print head
- Supporting up to 450 m ribbon length
Industrial-Standard Performance
- Fast data processing and print speeds of up to 8 ips (203 mm/sec)
- Optional 203 or 300 dpi high resolutions
- Fully compatible with market-leading programming languages
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.2 (MFi certified)
Secure and Efficient Management
- Twin funtion™ supported: Copy printer settings and data via USB
- Compatible with label design software;
- BIXOLON’s Label Artist and Seagull's BarTender
- XPM™ & XCM™ - Web-based printer management software and connection app.
Viktiga egenskaper
Bixolon XT3-40. Print technology: Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 203 mm/sec. Connectivity technology: Wired, Wi-Fi, USB port. Product colour: Black
Teknisk specifikation
Printing
| Print technology | Thermal transfer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 203 mm/sec |
|---|
| Maximum printing width | 108 mm |
|---|
| Minimum print length | 4000 mm |
|---|
Paper handling
| Ribbon width | 110 mm |
|---|
| Ribbon length | 450 m |
|---|
| Media thickness | 0.06 - 0.25 mm |
|---|
| Maximum roll diameter | 203 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Wi-Fi | Yes |
|---|
| Bluetooth | No |
|---|
| USB port | Yes |
|---|
| RS-232 ports | 1 |
|---|
Performance
| Page description languages | BPL,SLCS |
|---|
| Internal memory | 128 MB |
|---|
| Flash memory | 128 MB |
|---|
| Built-in barcodes | 1D,2D |
|---|
Design
| Product colour | Black |
|---|
| Built-in display | Yes |
|---|
| Display | LCD |
|---|
| Display diagonal | 2.4 " |
|---|
| Colour display | Yes |
|---|
| Control type | Buttons |
|---|
Power
| AC input voltage | 100-240 V |
|---|
| AC input frequency | 50-60 Hz |
|---|
System requirements
| Linux operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
| Windows operating systems supported | Yes |
|---|
| Mobile operating systems supported | Android,iOS |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating temperature (T-T) | 5 - 40 °C |
|---|
Weight & dimensions
| Width | 240 mm |
|---|
| Depth | 430.5 mm |
|---|
| Height | 326.7 mm |
|---|
| Weight | 11800 g |
|---|
Packaging content
| Cables included | USB |
|---|
