Produktbeskrivning

Providing a consistent look and feel to BIXOLON's newer label printer lineups, the mid-tier Industrial class 4-inch (114mm) label printer supports UHF RFID print and encode capability. The XT5-40 series offers such key features as a USB Host, wireless; WLAN or MFi certified Bluetooth, 1Gigabit Ethernet, and print speeds up to 14 ips (356mm/sec). Choices of up to 600 dpi resolution for high definition output and 3.5 inch colour or 4.3 inch full-colour touch LCD display, plus easy in-field upgrades of media handling options – peel dispense and cutter, and factory-installed rewind configurations means that there is a choice for all your printing needs. Offering
The XT5-40 series is an industrial workhorse that ensures downtime is kept to a minimum thanks to its intuitive media and ribbon loading; The printer can be easily controlled thanks to the simple menu layout but can be also be viewed and controlled remotely thanks to the XPM device management software.



Viktiga egenskaper

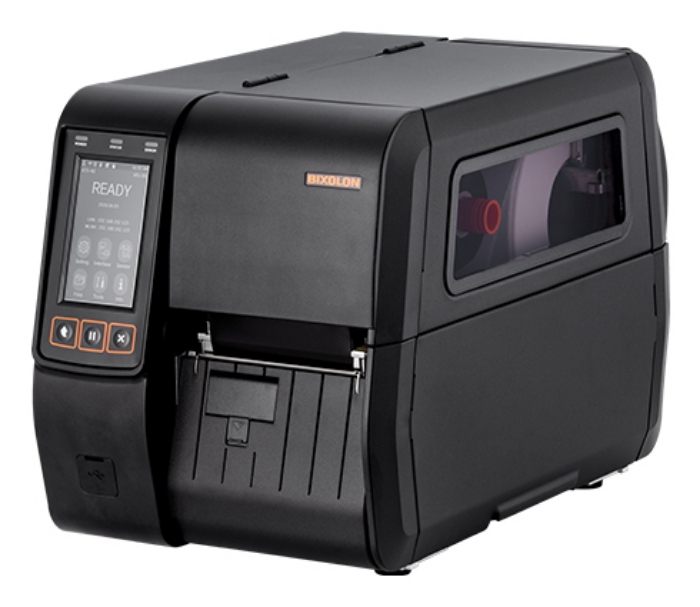

Bixolon XT5-43. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 254 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black



Teknisk specifikation

Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Print speed	254 mm/sec
Maximum printing width	105.7 mm

Ribbon width	110 mm
Ribbon length	450 m
Media thickness	0.06 - 0.30 mm
Maximum roll diameter	203 mm
Core diameter	25.4 mm

Connectivity technology	Wired
Ethernet LAN	Yes
USB port	Yes
USB 2.0 ports quantity	2
Optional connectivity	Serial (RS-232)

Page description languages	DPL,EPL,SLCS,ZPL II
Internal memory	512 MB
Flash memory	512 MB

Product colour	Black
Built-in display	Yes
Display	LCD
Display diagonal	4.3 "
Colour display	Yes
Backlight display	Yes
Control type	Touch

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Linux operating systems supported	Yes
Windows operating systems supported	Yes
Mobile operating systems supported	Android
Mac operating systems supported	Yes

Operating relative humidity (H-H)	10 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C

Width	269 mm
Depth	490 mm
Height	324 mm
Weight	13980 g

Harmonized System (HS) code	84433210

Sustainability certificates	ENERGY STAR

Emulations	SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL), BPL-D™ (DPL)
