Produktbeskrivning

Improved Performance
- Flexible character alignment on display (Horizontal, vertical, font space and line space)
- Adjust alignment (Center, left and right)
- Maximum 120 characters display
- Two character font available (8 x 16, 9 x 17)
- 250% enhanced reliability as compared BCD-1000/1100
- Simple download and display image by utility

Highly Flexible Design
- Adjustable display height
- Optional wall mount
- 13° five option angle adjustor and 360° screen rotation
- Easy connection to the host via USB cable pass-through design

Hardware Compatibility
- Easy plug and play USB set up
- Compatible with all major operating systems including Android™, iOS™ and Windows®



Viktiga egenskaper

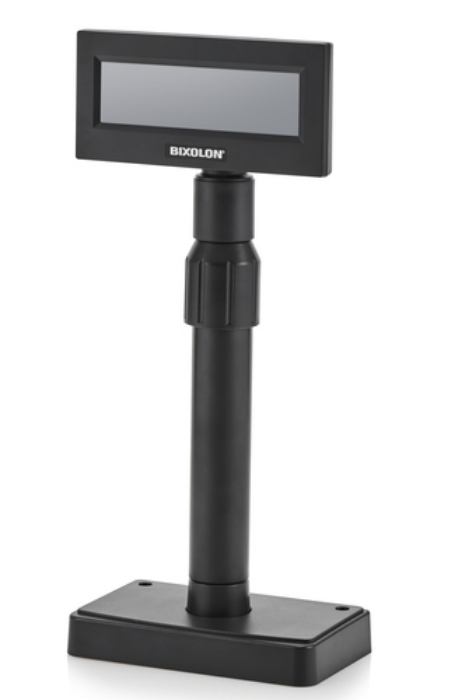

Bixolon BCD-2000. Display digits: 120 digits, Digit pitch: 0.03 mm, Display brightness: 100 cd/m². Product colour: Black, Tilt angle range: 0 - 13°, Height adjustment range: 167 - 521 mm. Interface: USB 2.0, Optional connectivity: Serial (RS-232), USB 2.0. Width: 162.5 mm, Depth: 97.6 mm, Height: 521 mm



Teknisk specifikation

Display digits	120 digits
Digit pitch	0.03 mm
Display brightness	100 cd/m²
Display size (HxV)	127.2 x 33.9 mm
Illumination colour	Blue,White

Product colour	Black
Tilt angle range	0 - 13 °
Height adjustment range	167 - 521 mm

Interface	USB 2.0
Optional connectivity	Serial (RS-232),USB 2.0

Storage relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 80 %
Operating temperature (T-T)	0 - 40 °C

Depth	97.6 mm
Height	521 mm
Width	162.5 mm
Weight	850 g
