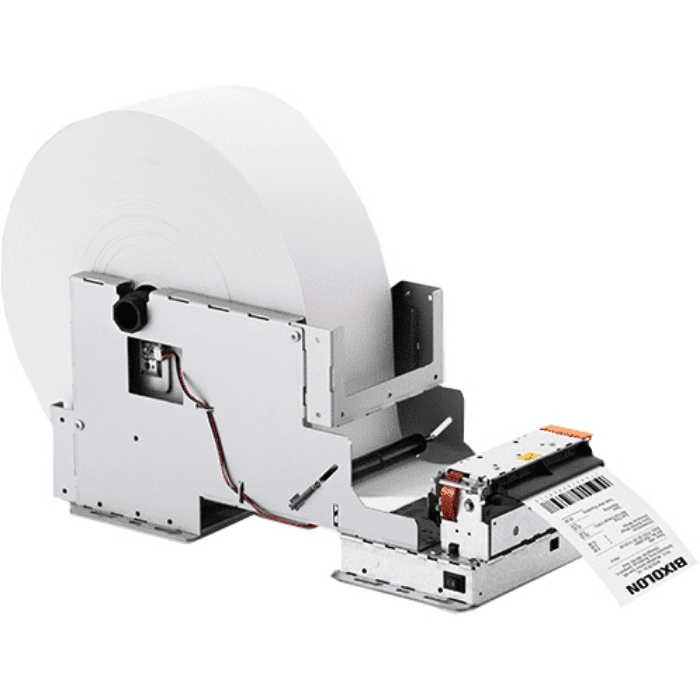

3-inch Kiosk Printer mechanism with large roll diameter

A compact, flexible and highly reliable 3-inch (up to 83mm) open frame kiosk printing mechanism. Designed for standalone self-service kiosk installations, the BK3-32 direct thermal printer operates at print speeds of up to 250mm per second with 203dpi resolution to produce high quality text, graphics and barcodes. Presenting a larger paper roll capacity than traditional packaged kiosk printers, the BK3-32 supports a roll diameter of up to 250mm for a wide range of printing applications from busy hospitality settings to unattended booths. The kiosk printer also provides a paper saving mode through BIXOLON’s simple Unified Utility which reduces paper wastage resulting in paper savings up to 25% and decreased CO2 emissions.

With compact, lightweight design the BK3-32 kiosk printer supports multiple mounting options to provide design flexibility for kiosk builders. With a seamless paper feed with additional roller-tension, multi-position near end sensor for easy monitoring of the paper and an presenter to reduce paper jamming and vandalism. The kiosk printing mechanism also supports USB V2.0 and Serial (9 pin male or 5 pin connector) with a DC Jack or 2 pin power connector connectivity as standard.

Supported by BIXOLON’s wide range of drivers, utilities and SDKs, the BK3-32 is compatible with Windows® major OS system and OPOS-based systems from Android™, Windows® and Linux™ for smart based devices. Supporting by an industry leading 2 year warranty as standard.



Viktiga egenskaper

Bixolon BK3-32. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Paper loading type: Easy Paper Loading, Maximum roll diameter: 12 cm, Supported paper width: 80/58 mm. Connectivity technology: Wired. Built-in barcodes: 1D, 2D, Code 93, Code-128 Codabar Library, Code-39 Library, Data Matrix, EAN13, EAN8, GS1 DataBar..., Internal memory: 0.032 MB, Autocutter durability: 1.5 million cuts. Product colour: Stainless steel



Teknisk specifikation

Print technology	Direct thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Print speed	250 mm/sec
Character size	24 x 24 mm

Paper loading type	Easy Paper Loading
Maximum roll diameter	120 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm

Connectivity technology	Wired
USB port	Yes
USB 2.0 ports quantity	1
Serial interface	Yes

Ethernet LAN	Yes

Built-in barcodes	1D,2D,Code 93,Code-128 Codabar Library,Code-39 Library,Data Matrix,EAN13,EAN8,GS1 DataBar Expanded,GS1 DataBar Limited,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Truncated,GS1-128,ITF,PDF417,QR Code,UPC-A,UPC-E
Internal memory	0.032 MB
Autocutter durability	1.5 million cuts
Wall mountable	Yes
Mounting position	Vertical
Receive buffer	64 KB
Print head life	100 km

Product colour	Stainless steel

Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Operating relative humidity (H-H)	10 - 95 %
Storage relative humidity (H-H)	10 - 95 %
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Buffer size	64 KB
