Produktbeskrivning
- Wristband Printer
- Order Label Printer
- Barcode Printer
Advanced Performance- Printing speed up to 6 ips (152 mm/s)
- Fast data processing speed of various types of label
Smart Media Detection™- Automatic paper detection such as gap media, black mark media and short length media paper
Dual interface- Standard: Serial + USB
- Optional: Ethernet + WLAN* + USB
User-friendly Design- Easy paper loading with adjustable paper guide
- Pause and cancel function-keys
Powerful CompatibilityThe SLP-DX220 is fully compatible with market-leading programming language; SLCS, BPL-Z™, BPL-E™.
Label Artist™Bixolon provides its custom label design program as bundle. It supports database connection as well as text, drawing lines and boxes, all kinds of graphics and 1D/2D Barcode printing.
Viktiga egenskaper

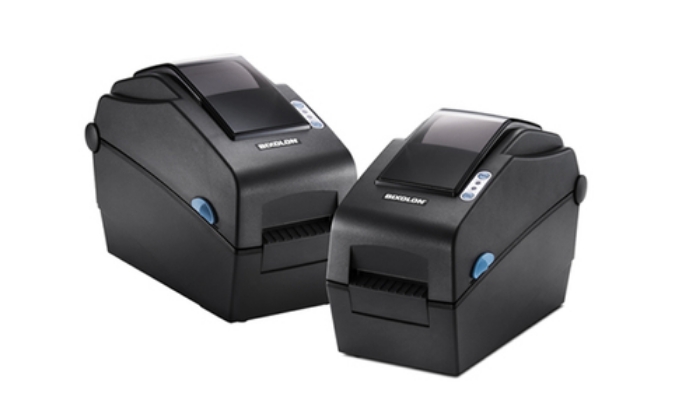

Bixolon SLP-DX223. Print technology: Direct thermal, Maximum resolution: 300 x 300 DPI, Print speed: 100 mm/sec. Connectivity technology: Wired, Ethernet LAN. Supported paper width: 15 - 60 mm. Product colour: Grey
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Colour | No |
|---|
| Maximum resolution | 300 x 300 DPI |
|---|
| Print speed | 100 mm/sec |
|---|
| Printing colours | Black |
|---|
| Maximum printing width | 56.9 mm |
|---|
| Minimum print length | 6 mm |
|---|
| Maximum print length | 2 m |
|---|
Paper handling
| Supported paper width | 15 - 60 mm |
|---|
| Maximum roll diameter | 130 mm |
|---|
| Media thickness | 0.06 - 0.20 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
| RS-232 ports | 1 |
|---|
Performance
| Page description languages | BPL |
|---|
| Internal memory | 64 MB |
|---|
| Flash memory | 128 MB |
|---|
| Built-in barcodes | 1D,2D,AZTECCODE,CODABAR (NW-7),Code 11,Code 39,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,GS1 DataBar,IMB,Industrial 2/5,Interleaved 2/5,MicroPDF417,PDF417,POSTNET,QR Code,TLC39,UPC-A,UPC-E |
|---|
Power
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 40 % |
|---|
| Storage relative humidity (H-H) | -20 - 60 % |
|---|
| Storage temperature (T-T) | 10 - 90 °C |
|---|
| Operating temperature (T-T) | 10 - 80 °C |
|---|
Weight & dimensions
| Width | 120 mm |
|---|
| Depth | 230 mm |
|---|
| Height | 170 mm |
|---|
| Weight | 1360 g |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Other features
| Navigation key | Yes |
|---|
| LED indicators | Yes |
|---|
