Produktbeskrivning
Robust and powerful, the SLP-TX400 4” thermal transfer or direct thermal label printer is perfect for a range of industries including: Transport and Logistics, Healthcare, Aviation, Manufacturing, Ticketing and more.
This high-quality label printer offers fast print speeds up to 178mm / second (7ips), printing 203dpi high quality text, graphics and barcodes. The SLP-TX400 also offers Autocutter or Peeler options and 300 metre ribbon.
Offering the All-in-one interface, with Serial, Parallel and USB as standard with optional Serial, USB, Ethernet and WLAN*. The SLP-TX400 is fully compatible with market-leading programming languages.
The SLP-TX400 also boasts BIXOLON label printer intelligence with Smart Media Detection™, the automatic detection of label and receipt media type. BIXOLON Label Artist™, free-of-charge label customisation software, supporting database connection as well as text, drawing lines and boxes, alongside a range of graphics and 1D/2D barcode printing.
*WLAN: 802.11b/g/n USB dongle type (not included in the package)
- High quality 4” label and barcode Direct Thermal & Thermal Transfer printer
- Optional WiFi connectivity
- Smart Media Detection, automatically recognising various types of labels and receipt media
- High print speed & quality label printing at 178mm/sec (7ips)
- 203 or 300dpi high quality printing for text, graphics and 1D/2D barcodes
- Triple interface: Standard: USB, Serial and Parallel Optional: USB, Serial, Ethernet & WLAN*
- Autocutter or Peeler options
- 300 metre ribbon
- Compatible with marketing leading programming languages
- Energy Star Compliant
- 2 year warranty
Viktiga egenskaper

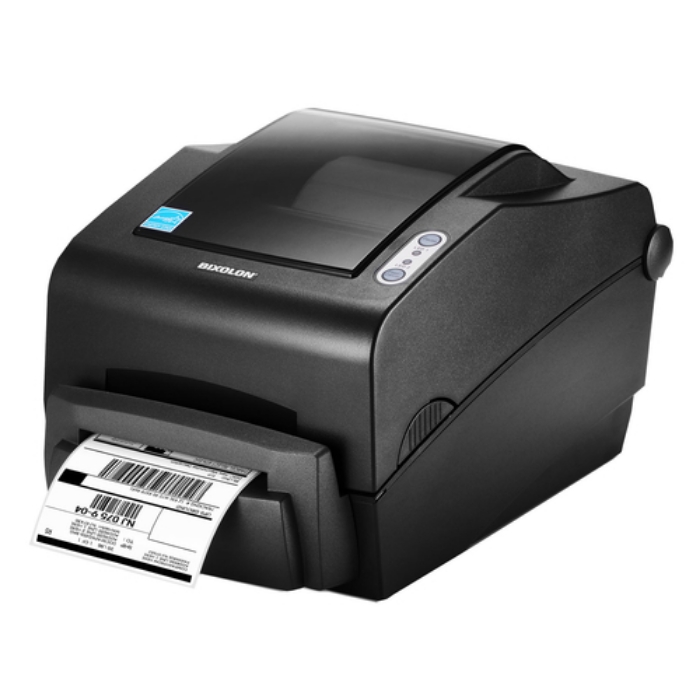

Bixolon SLP-TX403. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 127 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Supported paper width: 25 - 116 mm. Product colour: Black
Teknisk specifikation
Printing
| Print technology | Direct thermal / Thermal transfer |
|---|
| Colour | No |
|---|
| Maximum resolution | 300 x 300 DPI |
|---|
| Print speed | 127 mm/sec |
|---|
| Printing colours | Black |
|---|
| Maximum printing width | 105.7 mm |
|---|
| Minimum print length | 6 mm |
|---|
| Maximum print length | 1 m |
|---|
Paper handling
| Ribbon width | 110 mm |
|---|
| Ribbon length | 300 m |
|---|
| Supported paper width | 25 - 116 mm |
|---|
| Media thickness | 0.06 - 0.20 mm |
|---|
| Maximum roll diameter | 130 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| RS-232 ports | 1 |
|---|
| Optional connectivity | Ethernet,Serial (RS-232) |
|---|
Performance
| Page description languages | BPL |
|---|
| Internal memory | 64 MB |
|---|
| Flash memory | 128 MB |
|---|
| Built-in barcodes | 1D,AZTECCODE,Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,GS1 DataBar,IMB,Industrial 2/5,Interleaved 2/5,MaxiCode,MicroPDF417,PDF417,POSTNET,QR Code,TLC39,UPC-A,UPC-E |
|---|
Design
| Product colour | Black |
|---|
Power
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 40 % |
|---|
| Storage relative humidity (H-H) | -20 - 60 % |
|---|
| Storage temperature (T-T) | 10 - 90 °C |
|---|
| Operating temperature (T-T) | 10 - 80 °C |
|---|
Weight & dimensions
| Width | 214 mm |
|---|
| Depth | 310 mm |
|---|
| Height | 195 mm |
|---|
| Weight | 2850 g |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Other features
| Navigation key | Yes |
|---|
| LED indicators | Yes |
|---|
