Produktbeskrivning

Compact desktop printer for 74 m ribbon
Label printer for Android mobile devices
Wireless shipping label printer
Wristband printer
1D and 2D Barcode printer

Flexible to Use
- Compatible with Android-based smart devices
- Triple interface supported: USB + Serial + Parallel
- Optional Ethernet and WLAN supported (USB dongle type)

Intelligent Function
Smart Media Detection™ is Bixolon’s world-class technology that detects label length and media types such as gap media, black mark media, and short length media paper. Intelligent Leap-over™ detects empty label and automatically leaps to the next label.

Premium-level Compatibility
Fully compatible with market-leading programming languages

User-friendly Design
- Various type of media sensor supported
- Easy paper loading with adjustable paper guide
- Simple to change ribbon, thermal print head, and roller

Label Artist™
Bixolon provides its custom label design program as bundle. It supports database connection as well as text, drawing lines and boxes, all kinds of graphics and 1D/2D Barcode printing.



Viktiga egenskaper

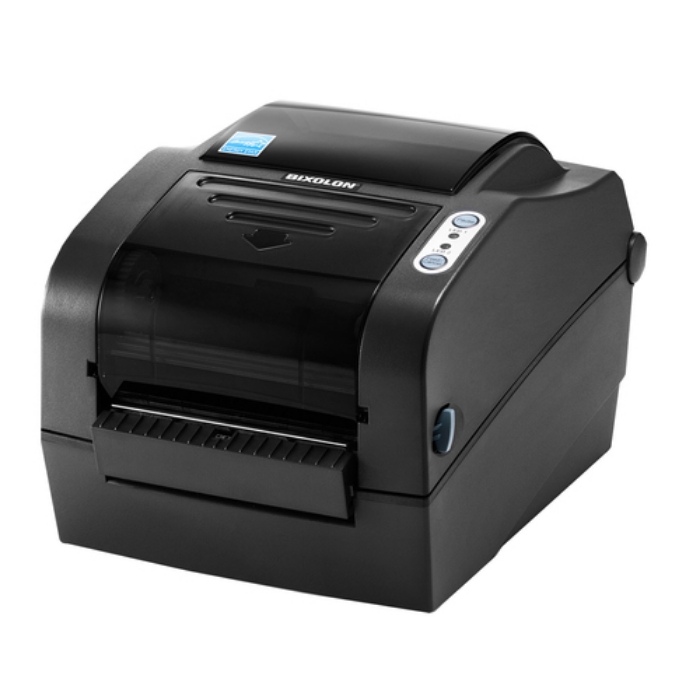

Bixolon SLP-TX423. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 127 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Wi-Fi, Bluetooth, USB port. Supported paper width: 20 - 110 mm. Product colour: Black, Grey



Teknisk specifikation

Print technology	Direct thermal / Thermal transfer
Colour	No
Maximum resolution	300 x 300 DPI
Print speed	127 mm/sec
Printing colours	Black
Maximum printing width	105.7 mm
Minimum print length	6 mm

Ribbon length	74 m
Maximum roll diameter	130 mm
Supported paper width	20 - 110 mm
Media thickness	0.06 - 0.2 mm

Connectivity technology	Wired & Wireless
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
USB port	Yes
USB 2.0 ports quantity	1
Parallel ports quantity	1
RS-232 ports	1

Page description languages	BPL
Built-in barcodes	1D,2D,AZTECCODE,CODABAR (NW-7),Code 11,Code 39,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,GS1 DataBar,IMB,Industrial 2/5,Interleaved 2/5,MaxiCode,MicroPDF417,PDF417,POSTNET,QR Code,TLC39,UPC-A,UPC-E

Product colour	Black,Grey
Built-in display	No

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Operating relative humidity (H-H)	10 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C

Width	200 mm
Depth	252 mm
Height	173 mm
Weight	2350 g

Manual	Yes
Drivers included	Yes
AC adapter included	Yes

Harmonized System (HS) code	84433210

Sustainability certificates	ENERGY STAR

LED indicators	Yes
