Produktbeskrivning

- Compact desktop printer for 74 m ribbon.
- Label printer for Android mobile devices.
- Wireless shipping label printer.
- Wristband printer.
- 1D and 2D Barcode printer.

Flexible to Use.
- Compatible with Android-based smart devices.
- Triple interface supported: USB + Serial + Parallel.
- Optional Ethernet and WLAN supported (USB dongle type).

Outstanding Form Factor.
- Fast printing speed up to 7 ips (178 mm/sec).
- Quick data processing through powerful memory.
- Compact design for 74m ribbon.
- Energy-efficient product.

Intelligent Function.
Smart Media Detection is Bixolon’s world-class technology that detects label length and media types such as gap media, black mark media, and short length media paper. Intelligent Leap-over™ detects empty label and automatically leaps to the next label.

Premium-level Compatibility.
Fully compatible with market-leading programming languages.

User-friendly Design.
- Various type of media sensor supported.
- Easy paper loading with adjustable paper guide.
- Simple to change ribbon, thermal print head, and roller.

Label Artist.
Bixolon provides its custom label design program as bundle. It supports database connection as well as text, drawing lines and boxes, all kinds of graphics and 1D/2D Barcode printing.



Viktiga egenskaper

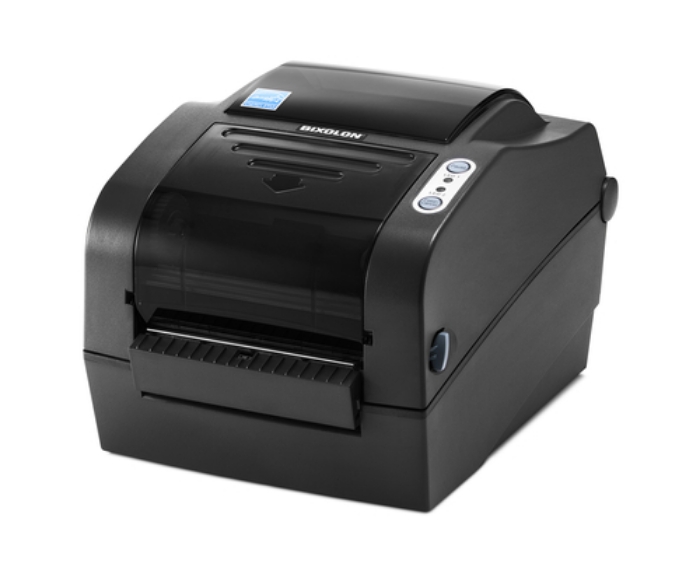

Bixolon SLP-TX423EG. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 127 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Supported paper width: 20 - 110 mm. Product colour: Grey



Teknisk specifikation

Print technology	Direct thermal / Thermal transfer
Colour	No
Maximum resolution	300 x 300 DPI
Print speed	127 mm/sec
Maximum printing width	105.7 mm
Maximum print height	2000 mm

Ribbon width	110 mm
Ribbon length	74 m
Maximum roll diameter	130 mm
Supported paper width	20 - 110 mm
Media thickness	0.06 - 0.20 mm
Core diameter	12.7 mm

Connectivity technology	Wired
Ethernet LAN	Yes
Wi-Fi	No
USB port	Yes
USB 2.0 ports quantity	2
RS-232 ports	1
Optional connectivity	Wireless LAN

Internal memory	64 MB
Flash memory	128 MB
Built-in barcodes	1D,2D,AZTECCODE,CODABAR (NW-7),Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,GS1 DataBar,IMB,Industrial 2/5,Interleaved 2/5,MaxiCode,MicroPDF417,PDF417,POSTNET,QR Code,TLC39,UPC-A,UPC-E

Product colour	Grey

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Windows operating systems supported	Yes

Operating relative humidity (H-H)	10 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C

Width	200 mm
Depth	252 mm
Height	173 mm
Weight	2350 g

Harmonized System (HS) code	84433210

Sustainability certificates	ENERGY STAR

Emulations	SLCS, BPL-Z, BPL-E
