Produktbeskrivning

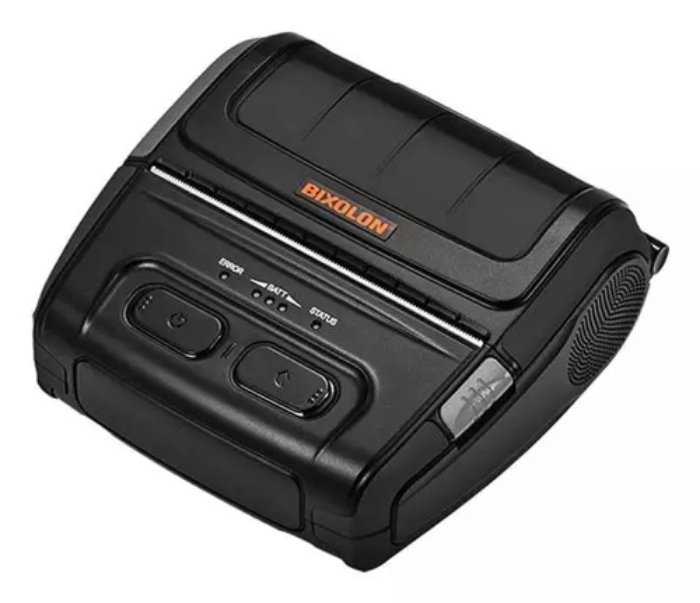

The SPP-L410 4-inch (112mm) Mobile Label Printer is a compact and durable printer with accompanying competitive price point is ideal for label printing applications within the Retail, Warehousing, Manufacturing and Logistics markets.
Sporting an ergonomic, lightweight design weighing just 530g, supporting 112mm and 105mm media widths and media roll diameter up to 56mm. The SPP-L410 produces 203dpi high resolution user defined fonts, graphics, and logos at speeds up to 4ips (102mm/sec) with a memory capacity up to 256 MB SDRAM, 512 MB Flash. Complete with a 7.4 V Li-ion, 2,850 mAh rechargeable battery with a 24 hour battery life once fully charged. The mobile label device also supports Linerless Labelling printing associated B-linerless media, alongside IP54 dust protection, a splash proof design and 1.8m (6ft.) drop test reliability.
Supporting WLAN Dual band (5 GHz and 2.4 GHz), Bluetooth V4.1 Classic & LE, USB & Serial interface options and Easy Bluetooth Pairing™ via an embedded NFC tag. The SPP-L410 is compatible with all major operating systems including Android™, iOS™, Windows®, Linux with additional Apple MFi iAP2 certification, supported by comprehensive Chrome and Xamarin SDKs. Working with market-leading programming languages including SLCS, BPL-Z™ & BPL-C™ to allow for easy printer integration into a range of installations. The mobile label printer provides label editing capabilities through BIXOLON’s Label Artist-II™, Label Artist™ Mobile (iOS™ and Android™), plus compatibility with BarTender®. While supporting the mPrint App (iOS™ and Android™), and Windows mPrint Browser.
Viktiga egenskaper
Bixolon SPP-L410. Print technology: Direct thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 7 µm, Maximum roll diameter: 5.6 cm, Maximum printing width: 10.4 cm. Built-in barcodes: 1D, Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1..., Internal memory: 128 MB, Page description languages: BPL, CPCL-native, SLCS, ZPL II. Product colour: Black. Power source type: Battery, Battery voltage: 7.3 V, Battery capacity: 2850 mAh
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Type | Mobile printer |
|---|
| Colour | No |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
Paper handling
| Maximum printing width | 104 mm |
|---|
| Maximum roll diameter | 56 mm |
|---|
| Maximum media length | 112 mm |
|---|
| Printing media thickness | 7 µm |
|---|
Ports & interfaces
| USB port | Yes |
|---|
| Serial interface | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | Yes |
|---|
Features
| Built-in barcodes | 1D,Codablock,Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,GS1 Databar (RSS-14),Industrial 2/5,Interleaved 2/5,LOGMARS,MSI,MaxiCode,MicroPDF417,PDF417,POSTNET,Plessey,QR Code,Standard 2/5,TLC39,UPC-A,UPC-E |
|---|
| Page description languages | BPL,CPCL-native,SLCS,ZPL II |
|---|
| Internal memory | 128 MB |
|---|
| Storage media | Flash |
|---|
| Flash memory | 256 MB |
|---|
Design
| Product colour | Black |
|---|
Power
| Power source type | Battery |
|---|
| Battery capacity | 2850 mAh |
|---|
| Battery voltage | 7.3 V |
|---|
Operational conditions
| Operating temperature (T-T) | -15 - 50 °C |
|---|
| Storage temperature (T-T) | -30 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 80 % |
|---|
Weight & dimensions
| Width | 143 mm |
|---|
| Depth | 138 mm |
|---|
| Height | 66 mm |
|---|
| Weight | 530 g |
|---|
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Other features
| International Protection (IP) code | IP54 |
|---|
