Produktbeskrivning
Smaller and Lighter Design- Easy to grip: 30% lighter and 26% slimmer
- than SPP-R300
- One touch cover open and easy paper loading
Mobile Field-Work Optimization- Wireless and wired connectivity options including Bluetooth, WiFi, USB and Serial
- Supporting Easy Bluetooth Pairing™ via embedded NFC tag enabling auto pairing
- Dual-band WLAN (5GHz and 2.4 GHz)
- Dual-mode Bluetooth V4.1 Classic (MFi AP2 certified) and LE
- IP54 (Printer only) water and dust proof
- 1.8 m / 6 ft. drop rate
- Long-lasting battery life (24-hour stand by time)
Built for Multi-Purpose- Fast printing speed up to 100 mm/sec (Receipt)
- Designed for the receipt and label printing(Simple to switch via the feed button)
- Optional linerless label printing(80 mm/sec at 203dpi)
- Supports black mark reflective sensor and transmissive gap sensor (Optional Positioning)
Viktiga egenskaper

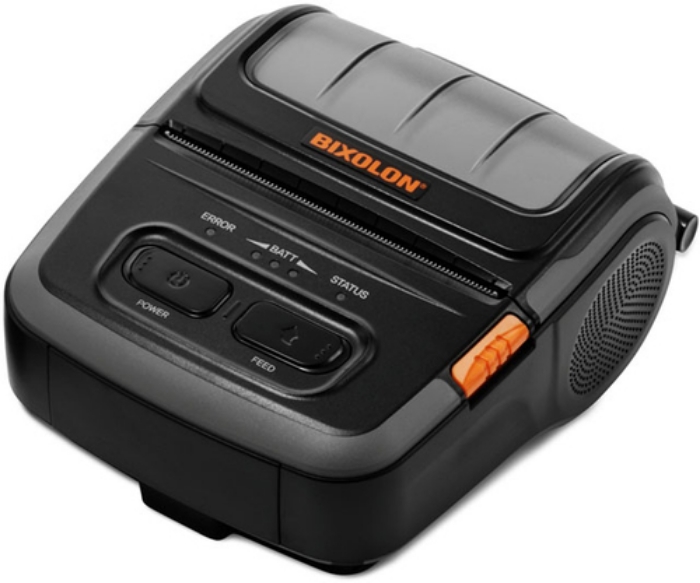

Bixolon SPP-R310. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 5 cm, Supported paper width: 80 mm, Maximum printing width: 7.2 cm. Connectivity technology: Wired & Wireless, Standard interfaces: USB 2.0. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13,..., Internal memory: 64 MB, Flash memory: 32 MB
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Type | POS printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 100 mm/sec |
|---|
| Character size | 12 x 24 mm |
|---|
Paper handling
| Maximum printing width | 72 mm |
|---|
| Maximum roll diameter | 50 mm |
|---|
| Supported paper width | 80 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 4.1 |
|---|
| Standard interfaces | USB 2.0 |
|---|
Network
| Ethernet LAN | No |
|---|
| Wi-Fi | Yes |
|---|
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
|---|
Features
| Built-in barcodes | 1D,2D,AZTECCODE,CODABAR (NW-7),Code 39,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,GS1 DataBar,ITF,MaxiCode,PDF417,QR Code,UPC-A,UPC-E |
|---|
| Internal memory | 64 MB |
|---|
| Flash memory | 32 MB |
|---|
| Magnetic stripe reader | Yes |
|---|
Design
| Product colour | Black |
|---|
Power
| Power source type | AC,Battery |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery recharge time | 4 h |
|---|
| Power consumption | 2600 mA |
|---|
| Battery voltage | 7.4 V |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
|---|
| Operating temperature (T-T) | -15 - 50 °C |
|---|
| Storage temperature (T-T) | -30 - 70 °C |
|---|
Weight & dimensions
| Width | 105 mm |
|---|
| Depth | 126 mm |
|---|
| Height | 58 mm |
|---|
| Weight | 385 g |
|---|
