Produktbeskrivning

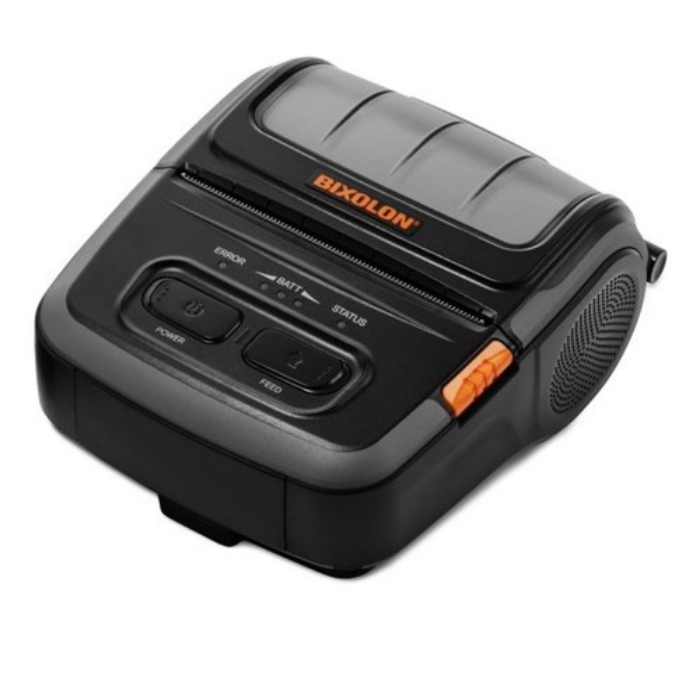

The SPP-R310 3” receipt, label and ticket mobile printer is super compact, rugged and ergonomic printer accompanied with Bluetooth, WiFi, USB and Serial connectivity options.

Supporting Easy Bluetooth Pairing via an embedded NFC tag enabling easy auto pairing with Apple iOS™, Android™ Symbian™ & Windows® smart devices, alongside Apple MFi iAP2 certification. The SPP-R310 also features a Auto-Switch function which provides simple automatic switching between iOS mode and standard Bluetooth modes.

Printing at speeds of 100mm/sec (receipt) at 203dpi printing resolution. The SPP-R310 provides a 24 hour battery life supporting continuous printing of 253 metres. Alongside a 1.8 metres drop certification and IP54 dust and water resistance rating within its protective case. Operating in an extreme temperature range of +50°C to -15°C due to its integrated temperature sensor, the 3” mobile printer with a 2 year warranty (including the print head) is fully functional in the harshest of environments.



Viktiga egenskaper

Bixolon SPP-R310. Print technology: Direct thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 70 µm, Maximum roll diameter: 5 cm, Supported paper width: 80 mm. Connectivity technology: Wired & Wireless, Optional connectivity: Bluetooth, Serial (RS-232), USB 2.0, Wireless LAN. Built-in barcodes: AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1..., Internal memory: 8 MB, Storage media: Flash. Product colour: Black, Grey



Teknisk specifikation

Print technology	Direct thermal
Type	Mobile printer
Maximum resolution	203 x 203 DPI
Print speed	80 mm/sec

Maximum roll diameter	50 mm
Maximum printing width	72 mm
Supported paper width	80 mm
Printing media thickness	70 µm

Connectivity technology	Wired & Wireless
USB port	Yes
USB 2.0 ports quantity	1
Serial interface	Yes
Optional connectivity	Bluetooth,Serial (RS-232),USB 2.0,Wireless LAN

Ethernet LAN	No

Built-in barcodes	AZTECCODE,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,Data Matrix,EAN13,EAN8,GS1 DataBar,ITF,MaxiCode,PDF417,QR Code,UPC-A,UPC-E
Internal memory	8 MB
Storage media	Flash
Flash memory	4 MB
Magnetic stripe reader	Yes

Product colour	Black,Grey

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery voltage	7.4 V

Operating temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	10 - 80 %
Storage temperature (T-T)	-30 - 70 °C

Windows operating systems supported	Yes
Mobile operating systems supported	Android,iOS
Linux operating systems supported	Yes

Width	105 mm
Depth	126 mm
Height	58 mm
Weight	405 g
