Produktbeskrivning
Cost-Efficiency- All in one Plus™ Interface
• Triple Interface
USB V2.0 FS + Ethernet + Serial
• Dual Interface
USB V2.0 FS + Serial
USB V2.0 FS + Parallel
USB V2.0 FS + SD
- Paper saving mode, reducing the length of a receipt up to 25%
Reliable Printing Performance- Printing speed up 220 mm/sec
- High reliability mechanism :
150 km TPH & 1.5 Million cuts Auto Cutter
- 203 dpi supported
User-Friendly Design- Stand-alone or space-saving wall-mount use
- 2” or 3” paper choice
- 2 inch partition included
- Anti-jam guide
- Easy Tracking™ supports a QR code linking to the technical support micro site on a unique label plate found on the bottom of the printer
Viktiga egenskaper

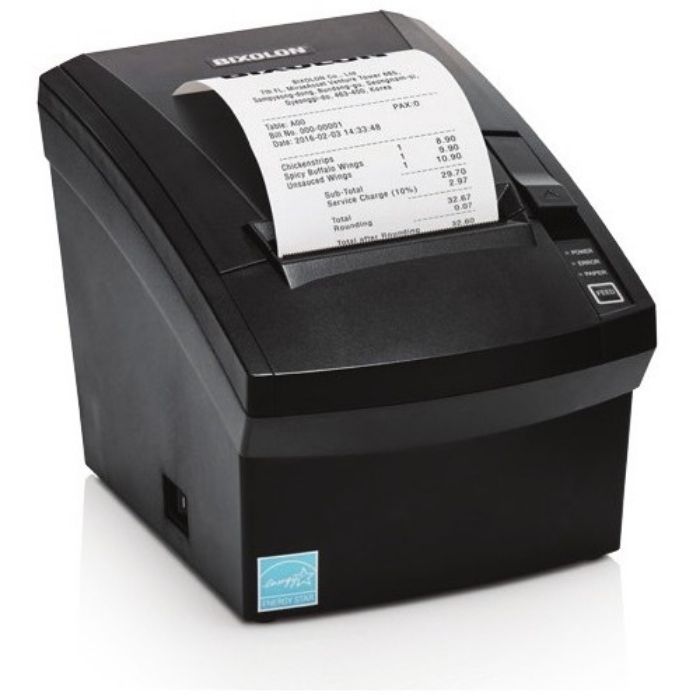

Bixolon SRP-332II. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 8 cm, Supported paper width: 80/58 mm, Maximum printing width: 7.2 cm. Connectivity technology: Wired, Standard interfaces: USB. Built-in barcodes: 1D, 2D, Code 39, Code 93, Data Matrix, EAN13, EAN8, ITF, PDF417, QR Code, UPC-A, UPC-E, Internal memory: 64 MB, Flash memory: 32 MB. Product colour: Black
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Type | POS printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 220 mm/sec |
|---|
| Character size | 24 x 24 mm |
|---|
Paper handling
| Maximum printing width | 72 mm |
|---|
| Supported paper width | 80/58 mm |
|---|
| Media thickness | 0.062 - 0.075 mm |
|---|
| Maximum roll diameter | 80 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Standard interfaces | USB |
|---|
| Serial ports quantity | 1 |
|---|
Network
| Ethernet LAN | No |
|---|
| Wi-Fi | No |
|---|
Features
| Built-in barcodes | 1D,2D,Code 39,Code 93,Data Matrix,EAN13,EAN8,ITF,PDF417,QR Code,UPC-A,UPC-E |
|---|
| Internal memory | 64 MB |
|---|
| Flash memory | 32 MB |
|---|
| Cutter | Yes |
|---|
| Autocutter durability | 1.5 million cuts |
|---|
| Built-in sensors details | Paper End, Cover Open |
|---|
Design
| Product colour | Black |
|---|
Power
| Power source type | AC |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Operating relative humidity (H-H) | 10 - 80 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
System requirements
| Mobile operating systems supported | Android,iOS |
|---|
Weight & dimensions
| Width | 145 mm |
|---|
| Depth | 146 mm |
|---|
| Height | 198 mm |
|---|
| Weight | 1370 g |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Other features
| LED indicators | Yes |
|---|
| Buffer size | 12 KB |
|---|
