Produktbeskrivning

The SRP-F310II is a powerful 3-inch (80mm) thermal printing solution, producing high quality receipts and tickets at 180dpi and 203dpi. Featuring a robust, ergonomic front-exit design, with IP12 certification, patented Liquid-Barrier™ technology and built-in power supply, to provide the perfect under counter or space constrained printing solution. Featuring the All-In-One-Plus™ interface, built-in USB V2.0 & Ethernet + optional Serial, Parallel, Powered USB, Bluetooth or WLAN. The SRP-F310IIHi model also supports various USB peripherals, alongside web and cloud-based printing. While compatible with market-leading programming languages with an extensive range of drivers and SDKs.

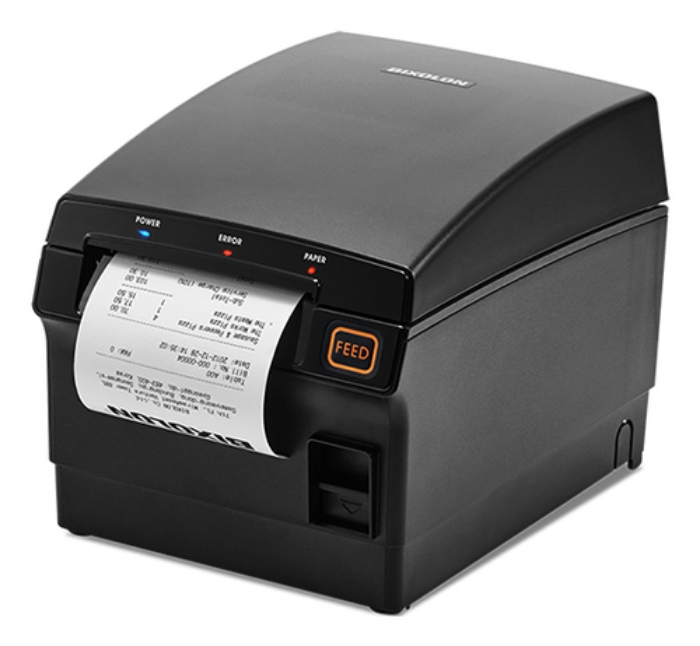

SRP-F310II
3 inch POS Printer
The SRP-F310II 3-inch (80mm) thermal printer, offers a front exit, splash proof design, featuring BIXOLON’s Liquid-Barrier™ technology and built-in power supply. Producing 180dpi or 300dpi printed media at an impressive 350mm/second makes it suitable for a number of applications in Retail, Hospitality, Healthcare, Warehousing and more.



Viktiga egenskaper

Bixolon SRP-F310II. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 180 x 180 DPI. Paper loading type: Top & front, Printing media thickness: 0.05 - 0.08 µm, Maximum roll diameter: 10.5 cm. Connectivity technology: Wired & Wireless, USB connector: USB Type-A, Serial interface type: RJ-45. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n). Built-in barcodes: 1D, 2D, Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, PDF417, QR..., Internal memory: 0.768 MB, Autocutter durability: 3 million cuts



Teknisk specifikation

Print technology	Direct thermal
Type	POS printer
Maximum resolution	180 x 180 DPI
Number of printable dots	512 dot
Print speed	350 mm/sec
Printing characters	2D barcode,Barcode

Paper loading type	Top & front
Maximum printing width	83 mm
Maximum roll diameter	105 mm
Supported paper width	80 mm
Printing media thickness	0.05 - 0.08 µm

Connectivity technology	Wired & Wireless
USB port	Yes
USB 2.0 ports quantity	1
USB connector	USB Type-A
Serial interface	Yes
Serial interface type	RJ-45
Bluetooth	Yes
Bluetooth version	4.2

Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)

Built-in barcodes	1D,2D,Code 39,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,ITF,PDF417,QR Code,UPC-A,UPC-E
Internal memory	0.768 MB
Cutter	Yes
Autocutter durability	3 million cuts
Print head life	250 km

Product colour	Black
Built-in display	No

Power source type	DC
AC input voltage	24 V
AC input frequency	50/60 Hz

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Windows operating systems supported	Yes
Mac compatibility	Yes
Mobile operating systems supported	Android,iOS
Linux operating systems supported	Yes

Width	154 mm
Depth	203 mm
Height	148 mm
Weight	2000 g

Sustainability certificates	ENERGY STAR
