Produktbeskrivning
Environmental Endurance- Liquid-Barrier™ creates real waterproof and dustproof solution (IP12 certified)
- Built-in power supply for space saving and water protection
Ensuring Business Continuity- High reliability of 250 km TPH with its auto cutter guaranteed up to 3 million cuts
- Faster printing speed of up to 350 mm/sec (29% faster than SRP-F310)
- All in one Plus™ Interface:
Built-in USB V2.0 & Ethernet + Optional Serial, Parallel,
Powered USB, Bluetooth or WLAN
Low TCO- Paper save mode supported
- Eco-friendly low power consumption technology adopted
- Energy star certified
Viktiga egenskaper

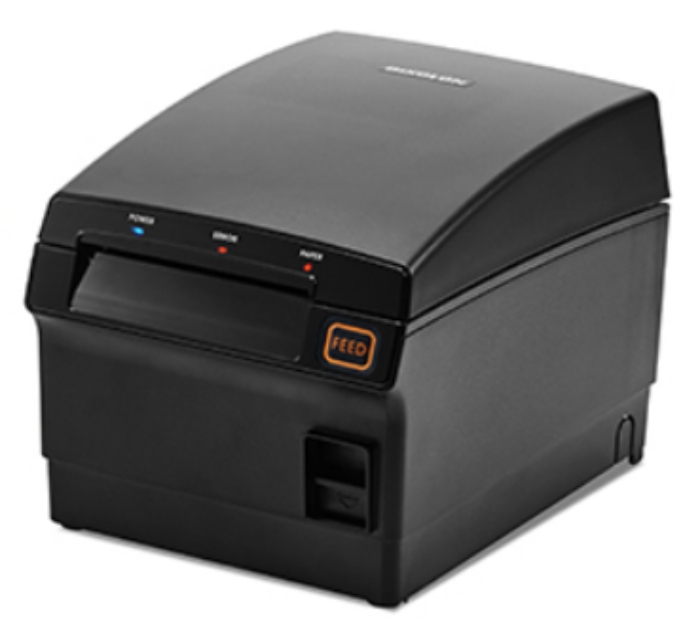

Bixolon SRP-F312II. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 10.5 cm, Supported paper width: 80/83 mm, Maximum printing width: 7.2 cm. Connectivity technology: Wired, Standard interfaces: RJ-45, USB 2.0. Built-in barcodes: 1D, 2D, Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, PDF417, QR..., Internal memory: 64 MB, Flash memory: 32 MB. Product colour: Black
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Type | POS printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 350 mm/sec |
|---|
| Character size | 24 x 24 mm |
|---|
Paper handling
| Media thickness | 0.062 - 0.075 mm |
|---|
| Maximum roll diameter | 105 mm |
|---|
| Maximum printing width | 72 mm |
|---|
| Supported paper width | 80/83 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Standard interfaces | RJ-45,USB 2.0 |
|---|
| Serial ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | No |
|---|
Features
| Built-in barcodes | 1D,2D,Code 39,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,ITF,PDF417,QR Code,UPC-A,UPC-E |
|---|
| Internal memory | 64 MB |
|---|
| Flash memory | 32 MB |
|---|
| Cutter | Yes |
|---|
| Autocutter durability | 3 million cuts |
|---|
| Built-in sensors details | Paper End, Paper Near End, Cover Open |
|---|
Design
| Product colour | Black |
|---|
Power
| Power source type | AC |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Power supply type | AC |
|---|
| Input current | 2.5 A |
|---|
Operational conditions
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Operating relative humidity (H-H) | 10 - 80 % |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|
System requirements
| Mobile operating systems supported | Android,iOS |
|---|
Weight & dimensions
| Width | 154 mm |
|---|
| Depth | 148 mm |
|---|
| Height | 203 mm |
|---|
| Weight | 2000 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
| AC adapter included | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Other features
| Splash proof | Yes |
|---|
| International Protection (IP) code | IP12 |
|---|
| LED indicators | Yes |
|---|
| Buffer size | 12 KB |
|---|
