Produktbeskrivning

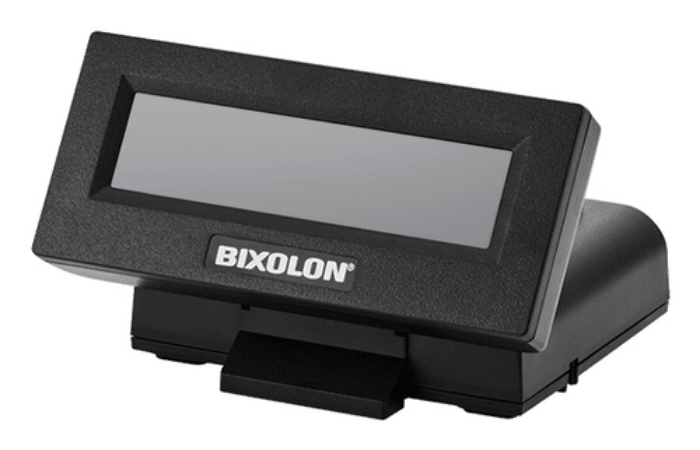

The BCD-3000 is BIXOLON’s smallest customer display, this mini Super Twister Nematic LCD Customer display is approximately 287% smaller than a standard customer display. Featuring a enhanced mono LCD with variable brightness, 2 lines of text display with flexible character alignment (horizontal, vertical, font and line spacing) and adjustable text alignment (center, left and right). While offering simple image download and display utility.
The customer display features multiple cable paths for easy management, the display has an adjustable angle from 0 to 35°. Featuring an easy plug and play USB setup and is compatible with all major operating systems including Android™, iOS™ and Windows®.



Viktiga egenskaper

Bixolon BCD-3000. Display type: LCD, Display number of lines: 2 lines, Display digits: 20 digits. Product colour: Black. Interface: RS-232, Optional connectivity: USB 2.0. Power source type: USB. Width: 130 mm, Depth: 68.5 mm, Height: 110.3 mm



Teknisk specifikation

LED backlight	No
Touchscreen	No
Display type	LCD
Display number of lines	2 lines
Display digits	20 digits
Display brightness	100 cd/m²
Display size (HxV)	99 x 24 mm
Effective viewing area	99 x 24 mm

Product colour	Black

Built-in speaker(s)	No

Card reader integrated	No

Interface	RS-232
Optional connectivity	USB 2.0

Power source type	USB

Operating relative humidity (H-H)	10 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 55 °C

Width	130 mm
Height	110.3 mm
Depth	68.5 mm
Weight	250 g
