Produktbeskrivning

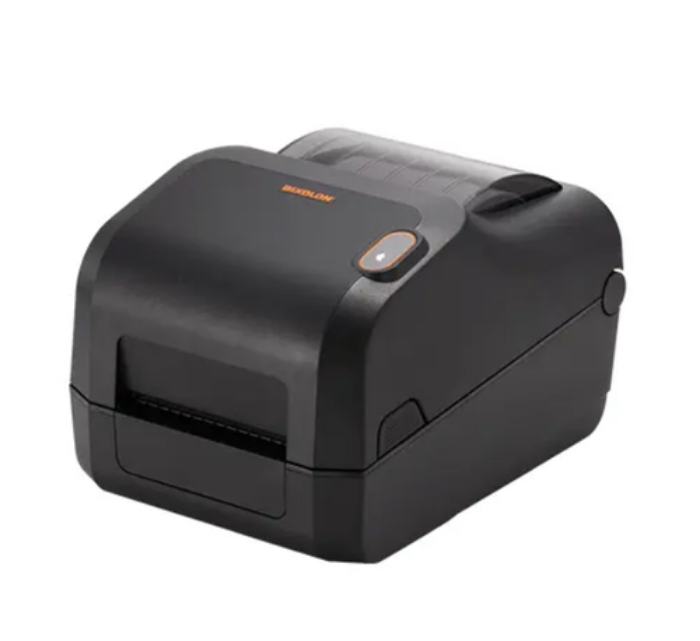

The XD3-40t, a 4-inch (118mm) cost-effective Direct Thermal or Thermal Transfer Desktop Barcode and Label printer. Featuring a compact, clamshell design paired with high reliability which is ideal for labelling applications within the Manufacturing, Retail, Transport and Logistics and Healthcare industries.

Supporting data processing and print speed up to 5 ips (127mm/sec) to produce high quality 203dpi text, graphics and barcodes paired with memory space of up to 64MB SDRAM, 125MB Flash Memory. Multiple connectivity options including USB 2.0 as standard, plus optional USB + Serial + Ethernet. Flexible core ribbon handling for 1/2-inch and 1-inch options (74m and 300m). While accompanied with an optional field-installable Peeler and an external paper supply, the label printer offers an adjustable paper guide plus holder and space for a media roll diameter of up to 127mm.

The XD3-40t is compatible with market-leading programming languages including SLCS™, BPL-Z™ and BPL-E™ and provides Smart Switch language programming without having to set the mode. Harmonizing with label design software including BIXOLON’s Label Artist-II™ and BarTender® UltraLite for BIXOLON. The XD3-40t also allows easy printer management and support with a single button setup with visual LED, comprehensive online ‘How to’ videos and an onboard QR code with direct links to online support resources. All complimented by a 2-year warranty as standard.



Viktiga egenskaper

Bixolon XD3-40. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 127 mm/sec. Connectivity technology: Wireless, Wi-Fi, USB port. Product colour: Black



Teknisk specifikation

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Print speed	127 mm/sec
Print speed	5 lpm
Maximum printing width	104 mm
Maximum print height	1000 mm
Margin depth settings	Fixed

Ribbon width	110 mm
Ribbon length	300 m
Media thickness	0.06 - 0.2 mm
Maximum roll diameter	127 mm
Maximum label width	118 mm

Connectivity technology	Wireless
Wi-Fi	Yes
USB port	Yes

Page description languages	BPL,SLCS
Internal memory	64 MB
Flash memory	128 MB

Product colour	Black
Built-in display	No

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Linux operating systems supported	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Operating relative humidity (H-H)	10 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Width	210 mm
Depth	284 mm
Height	186 mm
Weight	2600 g
