Produktbeskrivning

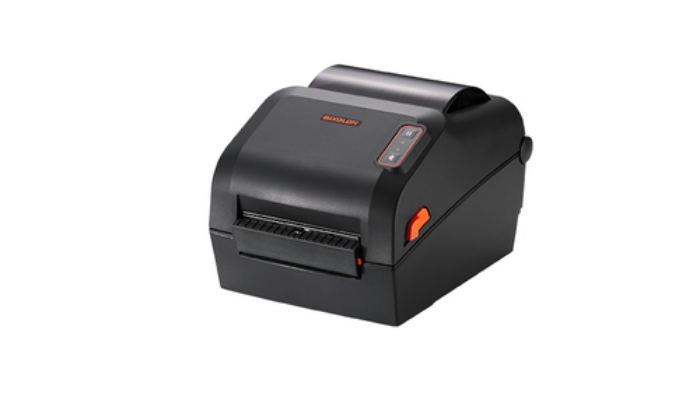

4-inch Direct Thermal Desktop Label Printer
The compact, 4-inch Direct Thermal XD5-40d provides a performance feature set supporting multiple media types and range of wired and wireless interfaces. Fast processing and print speeds up to 7ips, the printer has optional high resolution and LCD display choices. 300dpi for finer output and LCD display for easier setup and use, or to receive instructional and alert information that provides links to model specific support pages.

Reliable and Solid Performance
- Supporting Direct Thermal(XD5-40d) and Thermal Transfer(XD5-40t) label printing
- Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
- Optional 300 dpi high-resolution choice for fine print quality
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.0 (MFi certified)
- Extended memory space up to 256MB SDRAM, 512MB Flash

Next Level Usability
- Supports UHF RFID print and encode capability plus minimum encoding inlay pitch of 0.6 inch (16 mm) inlay
- An adjustable media guide and a holder
- Compact clamshell design with intuitive menu buttons and optional LCD Display
- Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
- Field-installable Peeler and Auto Cutter

Secure and Efficient Management
- Twin funtion™ supported: Copy printer setting and data by USB
- Compatible with label design software;
- BIXOLON’s Label Artist™ and Seagull's BarTender®
- XPM™ & XCM™ - Web-based printer management software and connection app
- A suite of SDKs for major operating systems
- Building standalone label printing solution using XI, BIXOLON's BASIC programming Interpreter



Viktiga egenskaper

Bixolon XD5-40DK/BEG. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 178 mm/sec. Connectivity technology: Wired, USB port. Product colour: Black



Teknisk specifikation

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Print speed	178 mm/sec

Autocutter	Yes
Ribbon width	110 mm
Ribbon length	300 m
Maximum label width	118 mm
Media thickness	0.06 - 0.2 mm
Maximum roll diameter	127 mm
Core diameters supported	12.7 mm (0.5"),25.4 mm (1"),38.1 mm (1.5")

Connectivity technology	Wired
Ethernet LAN	No
Wi-Fi	No
USB port	Yes
USB 2.0 ports quantity	2

Internal memory	64 MB
Flash memory	128 MB
Built-in barcodes	1D,2D,AZTECCODE,CODABAR (NW-7),Codablock,Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,GS1 Databar (RSS-14),IMB,Industrial 2/5,Interleaved 2/5,LOGMARS,MSI,MaxiCode,MicroPDF417,PDF417,POSTNET,Plessey,QR Code,Standard 2/5,TLC39,UPC

Product colour	Black
Built-in display	No
Control type	Buttons

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Mobile operating systems supported	Android,iOS

Operating relative humidity (H-H)	10 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Width	194 mm
Depth	248 mm
Height	169 mm
Weight	1890 g

Cables included	USB

Sustainability certificates	ENERGY STAR

Character sets	5 BPL-E,16 BPL-Z,SLCS,Unicode
Emulations	SLCS, BPL-Z (ZPLII), BPL-E (EPL)
