Produktbeskrivning

Robust and highly featured

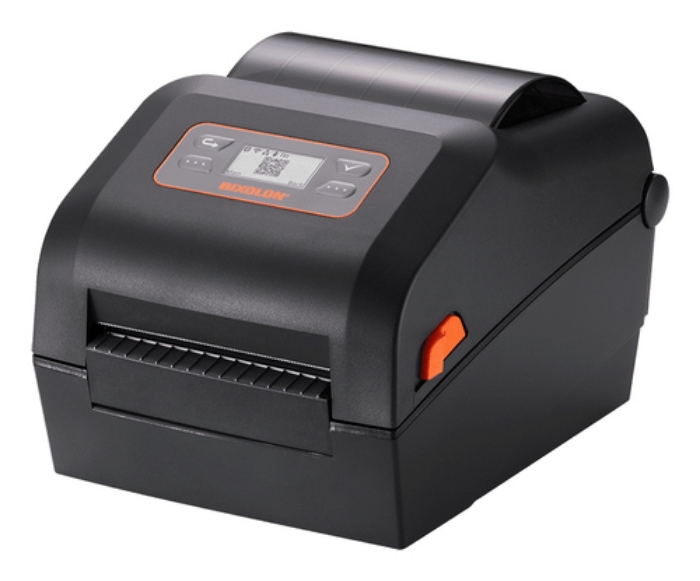

The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.

Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 3-year warranty as standard.

Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.



Viktiga egenskaper

Bixolon XD5-40d. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 178 mm/sec. Connectivity technology: Wired & Wireless, Wi-Fi, USB port. Product colour: Black



Teknisk specifikation

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Number of printable dots	8 dot
Print speed	178 mm/sec
Maximum printing width	108 mm

Autocutter	Yes
Ribbon width	110 mm
Ribbon length	300 m
Maximum roll diameter	127 mm
Maximum label width	118 mm
Media thickness	0.06 - 0.2 mm

Connectivity technology	Wired & Wireless
Ethernet LAN	No
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
USB port	Yes
RS-232 ports	1

Internal memory	64 MB
Flash memory	128 MB
Built-in barcodes	1D,2D,AZTECCODE,CODABAR (NW-7),Codablock,Code 11,Code 39,Code 49,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,GS1 DataBar,Industrial 2/5,Interleaved 2/5,MSI,MaxiCode,MicroPDF417,PDF417,POSTNET,Plessey,QR Code,TLC39

Product colour	Black
Built-in display	Yes
Display	LCD
Display resolution	200 x 100 pixels
Control type	Buttons

AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Mobile operating systems supported	Android,iOS

Operating relative humidity (H-H)	25 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Width	194 mm
Depth	248 mm
Height	169 mm
Weight	1890 g

Cables included	USB

Harmonized System (HS) code	84433210

Sustainability certificates	ENERGY STAR
