Produktbeskrivning

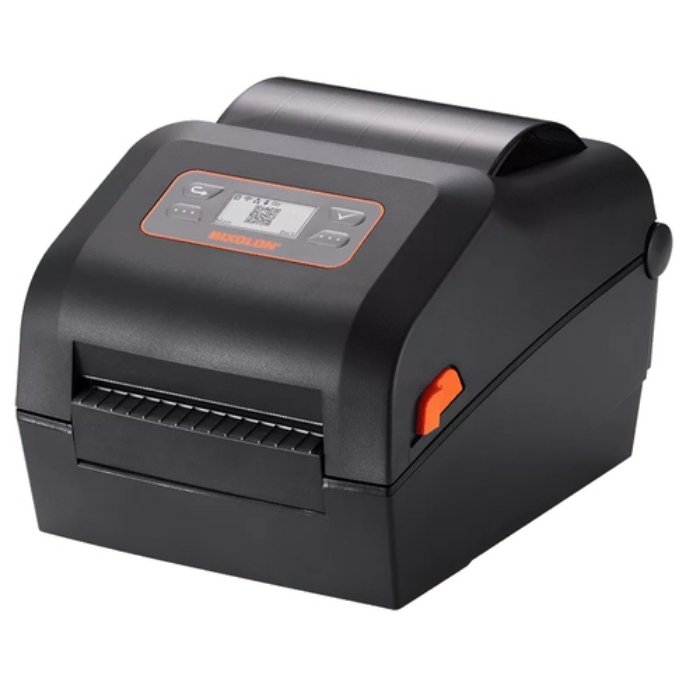

The XD5-40t is a 4-inch (118mm) mid-level Thermal Transfer Desktop Label Printer, featuring a rugged, compact, clamshell design and all-inclusive software features ideal for barcode and labelling applications for the Transport and Logistics, Manufacturing, Healthcare and Retail industries. Available as the XD5-40t (203dpi) and XD5-43t (300dpi) options, the XD5-40t’s standard model (XD5-40t) offers accelerated data processing and print speeds of up to 6 ips (152mm/sec), while boasting enhanced memory space of up to 256MB SDRAM and 256 MB Flash.

Providing printer flexibility, the XD5-40t offers a toolless field-installable Peeler, Auto Cutter and external paper supply. With an Optional LCD display, an adjustable paper guide and media roll diameter space of up to 127mm, suitability for both 1/2-inch and 1-inch core ribbons (74 m and 300m ribbon length) and enhanced ribbon handling with the new ribbon left-right balance adjustment. Alongside by Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 3-year warranty as standard.

Boasting multiple connectivity options, the XD5-40t comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The barcode and label is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file), alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.



Viktiga egenskaper

Bixolon XD5-40TOEK/BEG. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 152 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black



Teknisk specifikation

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Print speed	152 mm/sec
Maximum printing width	108 mm
Maximum print length	1 m

Autocutter	Yes
Ribbon width	110 mm
Ribbon length	300 m
Media thickness	0.06 - 0.2 mm
Maximum label width	118 mm
Maximum roll diameter	127 mm

Connectivity technology	Wired
Ethernet LAN	Yes
Wi-Fi	No
USB port	Yes

Internal memory	64 MB
Flash memory	128 MB

Product colour	Black
Built-in display	Yes
Display	LCD
Display resolution	200 x 100 pixels
Colour display	No
Control type	Buttons

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Linux operating systems supported	Yes
Mac operating systems supported	Yes
Mobile operating systems supported	Android,iOS
Windows operating systems supported	Yes

Operating relative humidity (H-H)	25 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-40 - 60 °C

Width	210 mm
Depth	284 mm
Height	188 mm
Weight	2480 g

Cables included	USB

Harmonized System (HS) code	84433210

Sustainability certificates	ENERGY STAR

Character sets	5 BPL-E,16 BPL-Z,SLCS,Unicode
