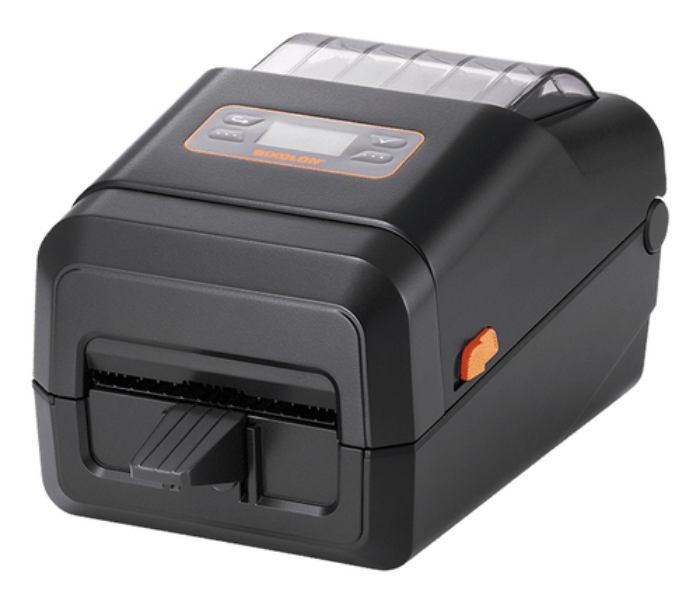

The XL5-40 is a 4-inch (114mm) Desktop Direct Thermal Linerless Label printer featuring an ergonomic clamshell design with economical linerless labelling features to allow the printing and cutting of various paper lengths for a range of applications within the Manufacturing, Retail, Hospitality and Healthcare industries. Available as the XL5-40 (203dpi) and XL5-43 (300dpi) resolution options, the XL5-40’s standard model (XL5-40) offers strong data processing and print speeds up to 6 ips (152mm/sec), with of 64MB SDRAM-DDR2, 128 MB Flash.
Accompanied with a full-width Auto Cutter and Media Support and Taken Sensor (label present sensor). Complimented by enhanced reliability through a Specialized Paper Path, Guillotine Cutting System and Anti-Curl support and optional LED or LCD displays. The XL5-40 is backed by a 2-year standard warranty.
Supporting multiple connectivity options, the XL5-40 comes with Dual USB 2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XL5-40 is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ and XCM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
Viktiga egenskaper
Bixolon XL5-40. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 152 mm/sec. Ethernet LAN, Wi-Fi, Bluetooth, USB port. Product colour: Black
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 152 mm/sec |
|---|
| Maximum printing width | 108 mm |
|---|
Paper handling
| Media thickness | 0.09 - 0.20 mm |
|---|
| Maximum roll diameter | 127 mm |
|---|
Ports & interfaces
| Ethernet LAN | Yes |
|---|
| Wi-Fi | Yes |
|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n) |
|---|
| Bluetooth | Yes |
|---|
| USB port | Yes |
|---|
Performance
| Page description languages | BPL,EPL,SLCS,ZPL II |
|---|
| Internal memory | 64 MB |
|---|
| Flash memory | 128 MB |
|---|
| Built-in barcodes | 1D,Codablock,Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,GS1 Databar (RSS-14),Industrial 2/5,Interleaved 2/5,LOGMARS,MSI,MaxiCode,MicroPDF417,PDF417,POSTNET,Plessey,Standard 2/5,TLC39,UPC-A,UPC-E |
|---|
Design
| Product colour | Black |
|---|
| Built-in display | Yes |
|---|
| Display | LCD |
|---|
| Display resolution | 200 x 100 pixels |
|---|
Power
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
Weight & dimensions
| Width | 186 mm |
|---|
| Depth | 287.7 mm |
|---|
| Height | 173 mm |
|---|
| Weight | 2800 g |
|---|
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
