Produktbeskrivning

Compact yet Resilient

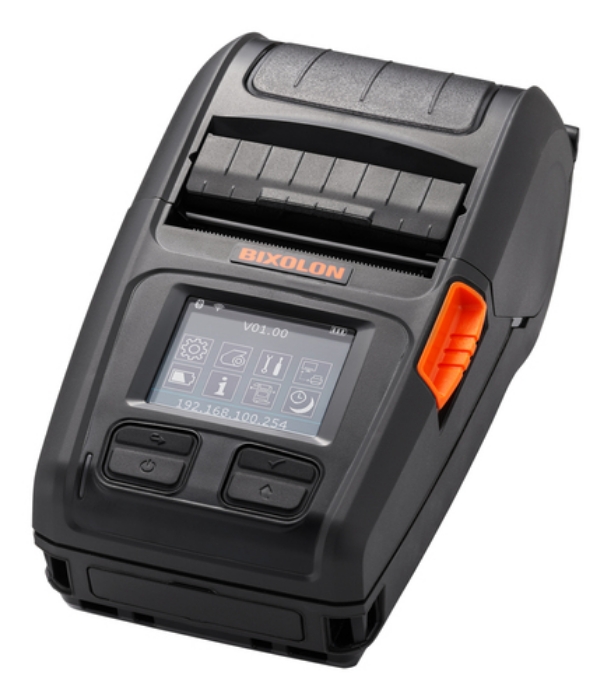

The XM7-20 is a compact, yet rugged 2-inch (58mm) premium level Auto-ID Mobile Liner and Linerless Label printer featuring an intuitive design and value add software support. A premium level printer, capable of speeds up to 6ips at 300dpi print resolution, it provides a drop protection of 2.1 metres and an IP54 protection rating. Through a smart battery with universal USB Type-C Power delivery charging, this mobile label printer provides a wealth of battery health information through BIXOLON’s web-based printer profile management software XPM™, guaranteeing consistent performance throughout prolonged operations, making it ideal for Logistics, Manufacturing, Retail and Healthcare printing applications.
A high connective device, the XM7-20 presents USB 2-0 and Serial interfaces as standard, with optional Bluetooth V5.0 Classic (MFi Certification) and WLAN 802.11a/b/g/n wireless technology which can be connected simultaneously. Supporting easy Bluetooth pairing via NFC allows compatibility with major operations including Android™, iOS™ and Windows™. The printer also boasts compatibility with market leading command languages such as SLCS, BPL-Z™, BPL-C™ and BXL/POS to allow for seamless integration with customers’ existing systems.
Boasting a 128 MB SRAM, 256 MB Flash memory as standard and optional 256 MB SDRAM, 512 MB Flash memory enabling the storage of fonts and graphics, alongside firmware upgrades and tools. The XM7-20 can print directly from SAP® Smart Forms and is compatible with a range of label editing applications including BIXOLON’s Label Artist™, Label Artist Mobile™ for iOS™ & Android™, alongside the industry leading Bartender® software.



Viktiga egenskaper

Bixolon XM7-20. Print technology: Direct thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 5.7 cm, Supported paper width: 25 - 58 mm, Maximum printing width: 4.8 cm. Connectivity technology: Wired & Wireless, USB connector: USB Type-C, Serial interface type: RS-232. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Security algorithms: 40-bit WEP, 104-bit WEP, WPA, WPA2. Internal memory: 128 MB, Page description languages: CPCL-native, ZPL II, Storage media: Flash



Teknisk specifikation

Print technology	Direct thermal
Type	Mobile printer
Maximum resolution	203 x 203 DPI
Number of printable dots	8 dot
Print speed	152 mm/sec
Print speed	6 ips
Character sets	16 BPL-Z,SLCS

Maximum roll diameter	57 mm
Maximum printing width	48 mm
Media thickness	0.07 ± 0.19 mm
Supported paper width	25 - 58 mm

Connectivity technology	Wired & Wireless
USB port	Yes
USB connector	USB Type-C
Serial interface	Yes
Serial interface type	RS-232
Bluetooth	Yes
Bluetooth version	5.0

Ethernet LAN	No
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
Security algorithms	40-bit WEP,104-bit WEP,WPA,WPA2

Page description languages	CPCL-native,ZPL II
Internal memory	128 MB
Storage media	Flash
Flash memory	256 MB

Product colour	Black
Built-in display	Yes
Display	LCD
Colour display	No
Display resolution	240 x 320 pixels

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	2850 mAh
Battery voltage	7.2 V

Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	10 - 80 %

Windows operating systems supported	Yes
Mac compatibility	Yes
Mobile operating systems supported	Android,iOS
Linux operating systems supported	Yes

Width	92.9 mm
Depth	168.2 mm
Height	69.2 mm
Weight	600 g

Drivers included	Yes

Harmonized System (HS) code	84433210

Sustainability certificates	ENERGY STAR

International Protection (IP) code	IP54
