Produktbeskrivning

Rugged and Powerful

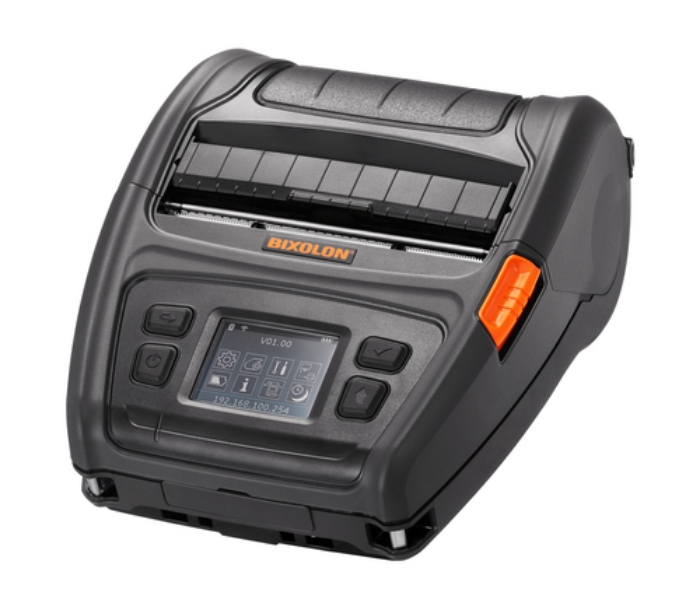

The XM7-40 is a rugged and industrial 4-inch (112mm) premium level Auto-ID Mobile Liner and Linerless Label printer bursting with value added design features and software add-ons. Providing premium-level performance at speeds of up to 5ips at 203dpi producing high quality printing output. The XM7-40 features a rugged, compact design, embedded Peeler, TFT Colour Display, drop protection of 2.1 metres and an IP54-rating. With a smart battery with universal USB Type-C Power delivery charging, this mobile label printer provides a wealth of battery health information through BIXOLON’s web-based printer profile management software XPM™, guaranteeing consistent performance throughout prolonged operations.
Providing seamless connectivity, the XM7-40 presents USB 2-0 and Serial interfaces as standard, with optional Bluetooth V5.0 Classic (MFi Certification) and WLAN 802.11a/b/g/n wireless technology which can be connected simultaneously. Supporting easy Bluetooth pairing via NFC allowing compatibility with major operations including Android™, iOS™ and Windows™. The printer also boasts unity with market leading command languages such as SLCS, BPL-Z™, BPL-C™ and BXL/POS to allow for seamless integration with customers’ existing systems.
Boasting a 128 MB SRAM, 256 MB Flash memory as standard and optional 256 MB SDRAM, 512 MB Flash memory enabling the storage of fonts and graphics, alongside firmware upgrades and tools. The XM7-40 prints directly from SAP® Smart Forms and is compatible with a range of label editing applications including BIXOLON’s Label Artist™, Label Artist Mobile™ for iOS™ & Android™, alongside the industry leading Bartender® software.



Viktiga egenskaper

Bixolon XM7-40. Print technology: Direct thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 6.6 cm, Supported paper width: 50 - 112 mm, Maximum printing width: 10.4 cm. Connectivity technology: Wired & Wireless, USB connector: USB Type-C, Serial interface type: RS-232. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Security algorithms: 40-bit WEP, WPA2, 104-bit WEP, WPA. Internal memory: 128 MB, Page description languages: CPCL-native, ZPL II, Storage media: Flash



Teknisk specifikation

Print technology	Direct thermal
Type	Mobile printer
Maximum resolution	203 x 203 DPI
Number of printable dots	8 dot
Print speed	5 ips
Print speed	127 mm/sec
Character sets	16 BPL-Z,SLCS

Maximum roll diameter	66 mm
Supported paper width	50 - 112 mm
Maximum printing width	104 mm
Media thickness	0.07 ± 0.15 mm

Connectivity technology	Wired & Wireless
USB port	Yes
USB connector	USB Type-C
Serial interface	Yes
Serial interface type	RS-232

Ethernet LAN	No
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
Security algorithms	40-bit WEP,WPA2,104-bit WEP,WPA

Page description languages	CPCL-native,ZPL II
Internal memory	128 MB
Storage media	Flash
Flash memory	256 MB

Product colour	Black
Built-in display	Yes
Display	LCD
Colour display	No
Display resolution	240 x 320 pixels

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery voltage	7.2 V
Battery capacity	6800 mAh

Operating temperature (T-T)	-15 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	10 - 80 %

Windows operating systems supported	Yes
Mac compatibility	Yes
Mobile operating systems supported	Android,iOS
Linux operating systems supported	Yes

Width	158 mm
Depth	186 mm
Height	82 mm
Weight	1090 g

Drivers included	Yes

Harmonized System (HS) code	84433210

Sustainability certificates	ENERGY STAR

International Protection (IP) code	IP54
