Produktbeskrivning

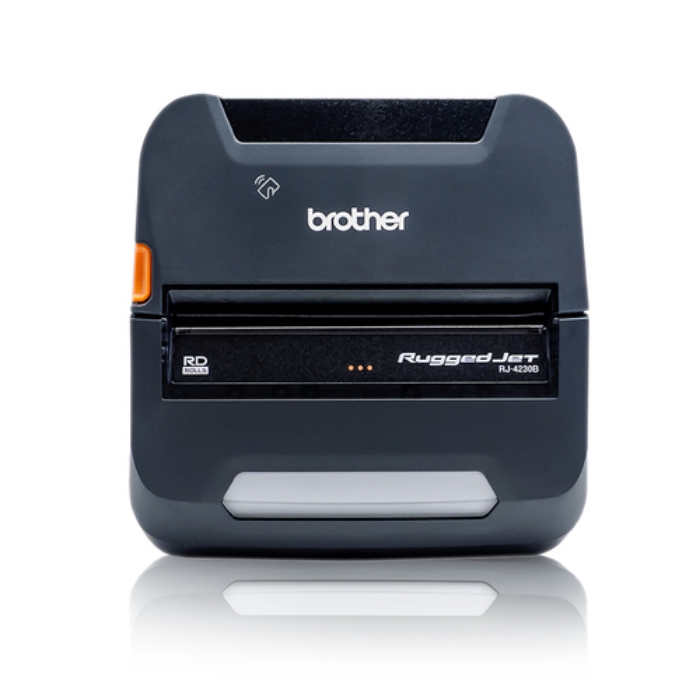

RuggedJet 4230BLThe NEW RuggedJet 4230BL, robust mobile printing for up to 4” labels, tags, and receipts, featuring Bluetooth® wireless technology.
The RuggedJet 4230BL mobile label and receipt printer raises the industry standard with a smart new way to manage and deploy printers, housing design and market leading technology, performance, ruggedness and connectivity. This amazingly fast and rechargeable, portable printing solution is designed to meet the needs of the busy mobile workforce. Print labels, tags, invoices, quotes, receipts, and more on the spot, with convenient Bluetooth connectivity that helps save valuable time.
Viktiga egenskaper
Brother RJ4230BL. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 127 mm/sec. Connectivity technology: Wired & Wireless, Bluetooth, Bluetooth version: 4.2. Product colour: Black
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Colour | No |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 127 mm/sec |
|---|
| Print speed | 5 lpm |
|---|
| Maximum printing width | 104 mm |
|---|
| Minimum print length | 12.7 mm |
|---|
| Maximum print length | 3 m |
|---|
Paper handling
| Core diameter | 25.4 mm |
|---|
| Maximum label width | 113 mm |
|---|
| Maximum roll diameter | 58 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| Ethernet LAN | No |
|---|
| Wi-Fi | No |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 4.2 |
|---|
| Optional connectivity | Near Field Communication (NFC) |
|---|
Performance
| Page description languages | CPCL-native,ESC P,ESC/P-P,Raster_P,ZPL |
|---|
| Internal memory | 256 MB |
|---|
| Flash memory | 64 MB |
|---|
| Built-in barcodes | AZTECCODE,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,EAN13,EAN8,GS1 COMPOSITE,GS1 DataBar,GS1 DataBar Expanded,MaxiCode,PDF417,QR Code,UPC-A |
|---|
| Number of fonts | 16 |
|---|
| Cutter | Yes |
|---|
| Security algorithms | 64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK |
|---|
| Certification | FCC Part15 Class B, UL, CE, CSA |
|---|
Design
| Product colour | Black |
|---|
| Built-in display | Yes |
|---|
| Display | LCD |
|---|
| Colour display | No |
|---|
| Backlight display | Yes |
|---|
| International Protection (IP) code | IP54 |
|---|
Power
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery capacity | 3000 mAh |
|---|
| Battery voltage | 7.2 V |
|---|
| Rechargeable | Yes |
|---|
System requirements
| Server operating systems supported | Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
|---|
| Mobile operating systems supported | Android,iOS |
|---|
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1 |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Operating temperature (T-T) | -20 - 55 °C |
|---|
Weight & dimensions
| Width | 121 mm |
|---|
| Depth | 247 mm |
|---|
| Height | 187 mm |
|---|
| Weight | 852 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package weight | 1429 g |
|---|
Packaging content
| Cables included | USB |
|---|
| Batteries included | Yes |
|---|
| AC adapter included | Yes |
|---|
Logistics data
| Pallet gross height | 162 mm |
|---|
| Pallet gross weight | 264400 g |
|---|
| Master (outer) cases per pallet | 56 pc(s) |
|---|
| Master (outer) cases per pallet layer | 8 pc(s) |
|---|
| Layers per pallet | 7 pc(s) |
|---|
| Products per pallet | 168 pc(s) |
|---|
Technical details
| Pallet type | 800 x 1200 mm |
|---|
Other features
| Emulations | ZPL emulation, CPCL |
|---|
| LED indicators | Yes |
|---|
| Country of origin | China |
|---|
| I/O ports | MFi |
|---|
