Produktbeskrivning

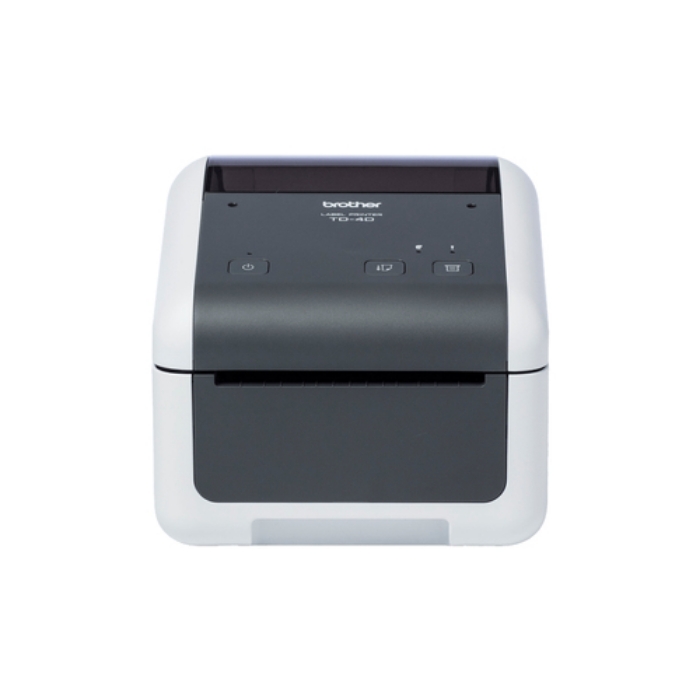

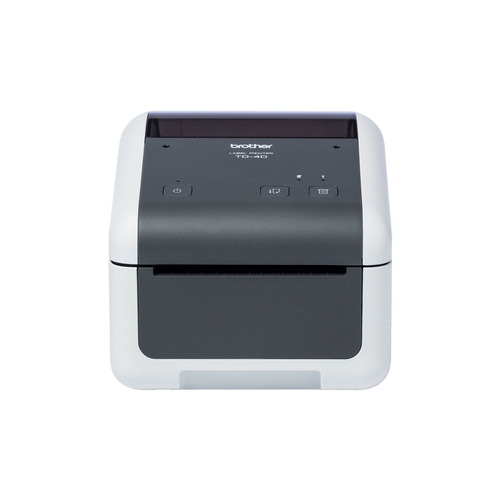

TD-4520DN Professional Network Desktop Label Printer

Print high quality, continuous labels using media up to 118mm/4.65 inch wide. With built-in network for easy sharing.

Using direct thermal print technology, accurate images with crisp definition is created. Great for printing high-volume, temporary labels with barcodes.

The length of media is automatically calculated with the media calibration function. Removing the need of manually entering label dimensions.

With network connectivity, data is quickly shared with different departments. Make the TD-4520DN bespoke to your needs with a range of accessories including a peeler and cutter.

Crop function

Ideal for creating shipping labels. Your A4 dispatch document is scanned and the barcode information is automatically processed. Individual labels are then printed from your TD-4520DN desktop label printer.

Seamless integration

To support integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.

Print from your Windows PC

Create customer labels using Brother P-touch Editor. Easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames. Also, link to excel data to batch print labels.

Network connectivity

Sharing the TD-4520DN is simple with the integrated network port. Increase your teams productivity with this network desktop label printer. Many users can share the printer in a variety of locations.

Software support

Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs.

Healthcare, medical and laboratory

With the strict regulations on the tracking of patient specimens and other items within the healthcare industry, clear, high quality labelling is essential to maintain safety and traceability.

Warehousing and logistics

Efficient warehousing operation and worker productivity are critical to the success of many companies. With the most common sizes of shipping labels available and the ability to create custom size labels, there are many uses for these models in the warehouse.

Retail

Easy to read labels are essential for consumers to help make informed decisions prior to a potential purchase. The high print resolution and high quality labels used in this range ensure that every output printed looks professional, offering sharp text, logos and barcodes with a high contrast to ensure faultless scanning at the checkout.



Viktiga egenskaper

Brother TD-4520DN. Print technology: Direct thermal, Maximum resolution: 300 x 300 DPI, Print speed: 203 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Grey, White



Teknisk specifikation

Print technology	Direct thermal
Colour	No
Maximum resolution	300 x 300 DPI
Print speed	203 mm/sec
Print speed	6 lpm
Minimum print length	17 mm
Mirror printing	Yes
Text style	Bold,Horizontal lines,Invert,Italic,Normal,Shadow,Shadow light,Surround
Maximum print length	3 m

Maximum roll diameter	127 mm
Core diameter	12.7 mm
Maximum label width	118 mm

Connectivity technology	Wired
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
USB port	Yes
USB 2.0 ports quantity	1
RS-232 ports	1

Page description languages	CPCL-native,DPL,EPL2,ESC P,Raster_P,ZPL II
Internal memory	256 MB
Flash memory	64 MB
Built-in barcodes	CODABAR (NW-7),Code 39,Code 93,Code-128 Codabar Library,EAN13,EAN8,GS1 DataBar,ITF,POSTNET,UPC-A,UPC-E
Number of fonts	6
Font styles	Brougham,Brussels,Helsinki,Letter Gothic,San Diego

Product colour	Grey,White
Built-in display	No
Display	No

Auto power off	Yes

Server operating systems supported	Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Linux operating systems supported	Yes
Windows operating systems supported	Windows 10,Windows 7,Windows 8,Windows 8.1
Mobile operating systems supported	Android 4.1,Android 4.2,Android 4.2.1,Android 4.2.2,Android 4.3,Android 4.4,Android 5.0,Android 5.1,Android 6.0,Android 7.0,Android 7.1,Android 7.1.2,Android 8.0,Android 9.0,iOS 10.0,iOS 11.0,iOS 12,iOS 8.0,iOS 8.1,iOS 8.2,iOS 8.3,iOS 8.4,iOS 9.0,iOS 9.1,

Operating relative humidity (H-H)	5 - 40 %
Storage relative humidity (H-H)	20 - 85 %
Operating temperature (T-T)	10 - 90 °C
Storage temperature (T-T)	-20 - 60 °C

Width	341 mm
Depth	237 mm
Height	274 mm
Weight	3070 g

Quantity per pack	1 pc(s)
Package weight	3994 g

Cables included	AC,USB
Software development kit (SDK)	Yes
Starter roll included	Yes
Quick start guide	Yes
AC adapter included	Yes
Warranty card	Yes

Harmonized System (HS) code	84433210
Pallet gross height	137.5 mm
Pallet gross weight	177760 g
Master (outer) cases per pallet	40 pc(s)
Master (outer) cases per pallet layer	8 pc(s)
Layers per pallet	5 pc(s)
Products per pallet	40 pc(s)

Pallet type	800 x 1200 mm

Date & time printing	Yes
Number of languages	18
Country of origin	China
Networking features	10/100BASE-TX
Languages support	CHI (SIMPL),CZE,DAN,DEU,DUT,ENG,ESP,FIN,FRE,HUN,ITA,JPN,NOR,POL,POR,RUS,SWE,TUR
LED indicators	Error,Power,Status
