Produktbeskrivning

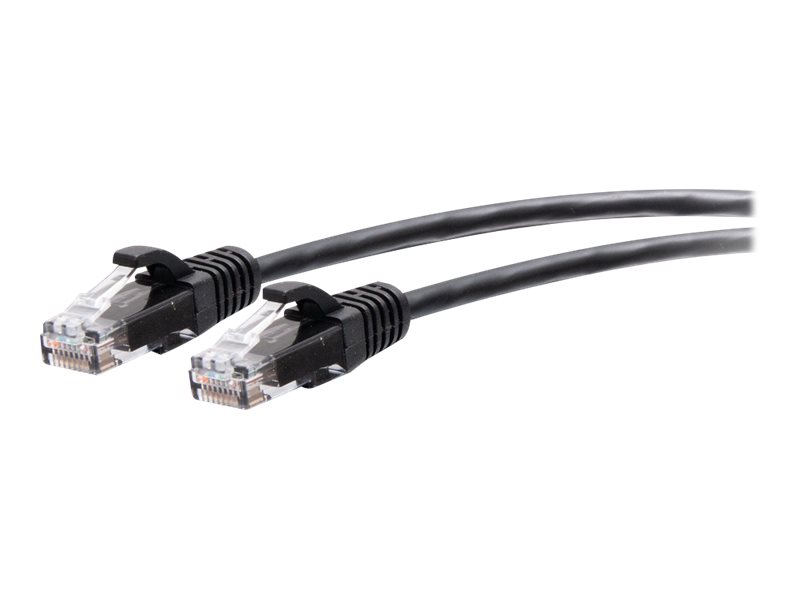

The Cat6a Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density cabling applications such as large conference rooms and datacenters. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

This network cable supports ethernet speeds up to 10Gbps at distances up to 328ft which is ideal for large conference rooms that may be leveraging HDBaseT technology. Cat6a technology doubles the minimum bandwidth of previous Cat6 cables and is five times more powerful than Cat5e. This increase in data speeds and bandwidth makes it the perfect Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) situations.

The use of 28AWG conductors allows for greater flexibility in those tight space installations where space is always crucial. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. And lastly, these cables are backed by a lifetime warranty to provide peace of mind.



Egenskaper

Colour
Black

Warranty
Lifetime

Connector 1:
(1) RJ-45 Male

Connector 2:
(1) RJ-45 Male



Teknisk specifikation

Typ av nätverkskabel	Patch-kabel - CAT 6a
Teknik	UTP (oskärmat tvinnat par)
Avskärmningsmaterial	Aluminiumhölje
Mantelmaterial	PVC
American Wire Gauge (AWG)	28
Trådar per kabel	8 kablar
Par per kabel	4 par
Pläterad kontakt	Guld
Egenskaper	Formpressad, hakfri, slim, klammer, upp till 10 Gbps, 100% test for short/open: 10M O, 300V DC insulation resistance, Voice over Internet Protocol (VoIP), Power over Ethernet (PoE)
Längd	3.6 m
Diameter	4.8 mm
Färg	Svart

Kontaktdon	RJ-45 - hane
Kontakt (andra änden)	RJ-45 - hane

Standarder som följs	RoHS 2 (2011/65/EU), ISO/IEC 11801-1, ANSI/TIA 568.2-D
Paketdetaljer	Plastpåse

Service och support	Begränsad livstidsgaranti
