Produktbeskrivning

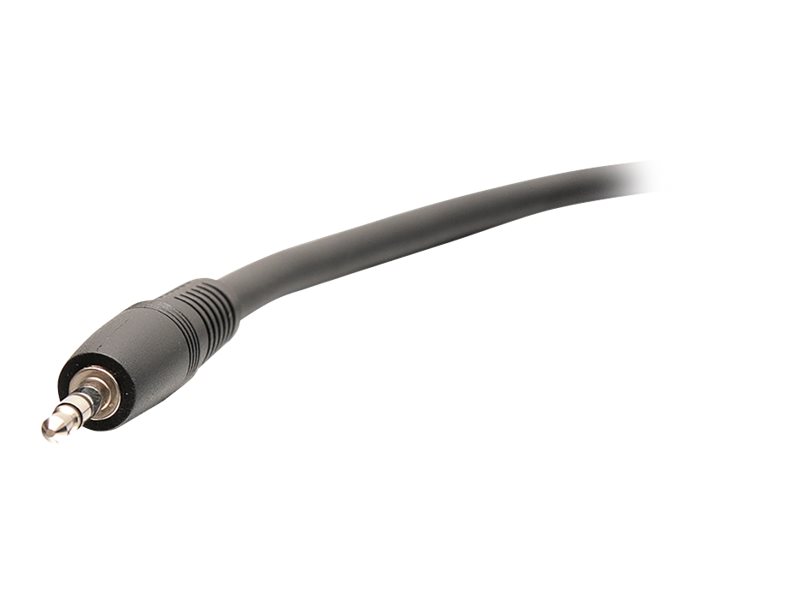

The 3.5mm Male 3 Position TRS to Female XLR Cable is perfect for interconnecting devices with 3.5mm jacks and devices with XLR inputs ― making it ideal for mixing consoles, amplifiers, and powered speakers.

This audio cable includes a 3.5mm TRS (Tip/Ring/Sleeve) connector, which means this cable has three conductors or three poles, including left and right stereo channels. The 3.5mm TRS jacks are commonly found on most stereo audio devices, while XLR inputs are commonly found on mixing consoles, amplifiers, and powered speakers. This is an unbalanced cable, so the left and right channels are soldered together making a mono signal to XLR, allowing the left and right stereo signal from a source with a 3.5mm stereo output to be converted to a single mono feed.

This audio cable has 22 AWG conductors, insulated, under an aluminum foil shield, and covered by a soft PVC shell. The soft PVC jacket reduces the risk of the cable kinking and damaging the conductors. Enjoy lasting quality and excellent performance no matter the connection.



Egenskaper

Colour
Black

Warranty
Lifetime

Connector 1 :
(1) 3.5mm Male

Connector 2 :
(1) XLR 3-pin Female



Teknisk specifikation

Kabeltyp	Headset-kabel
American Wire Gauge (AWG)	22
Mantelmaterial	Poluuretanskum (FM-PE)
Avskärmningsmaterial	Aluminiumhölje
Längd	0.5 m
Pläterad kontakt	Nickel, fosfor
Rekommenderad användning	Högtalare, surfplatta, röstinspelare
Färg	Svart

Kontaktdon	Mini-phone stereo 3.5 mm - hane
Kontakt (andra änden)	3-stifts XLR - hona

Standarder som följs	RoHS 2011/65/EU

Vikt	45 g

Service och support	Begränsad garanti - livstid
