Produktbeskrivning

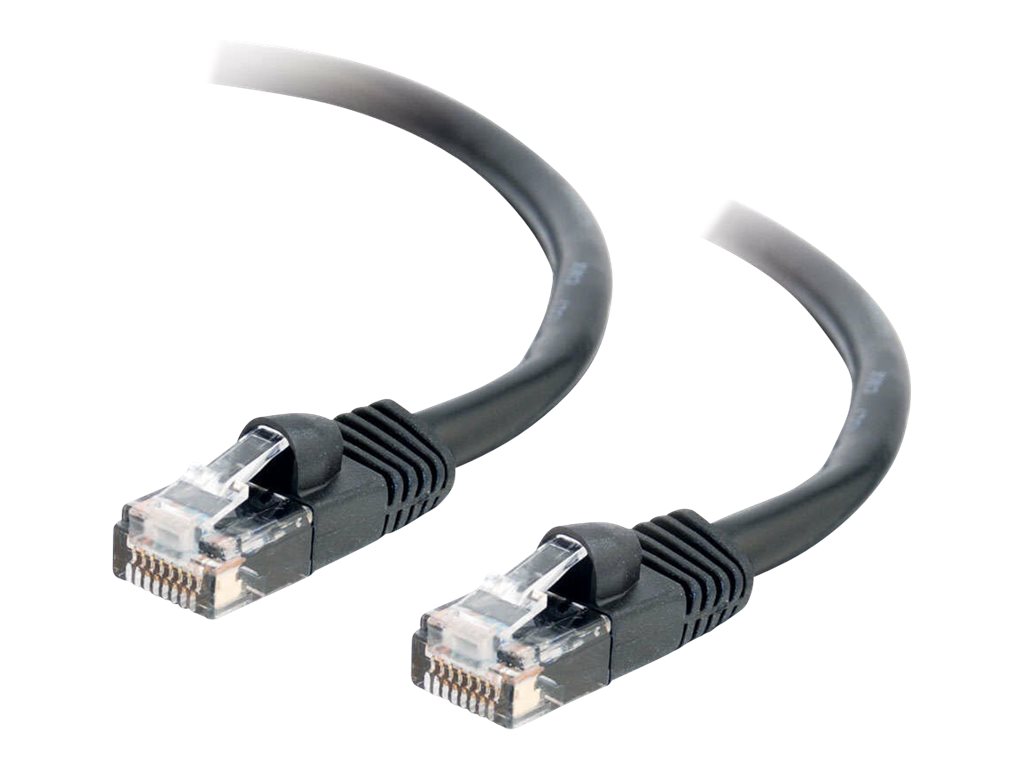

For Fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs are bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.
Egenskaper
● For Fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications
● Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL)
● Each of the individual pairs are bonded together to help maintain the twist-spacing throughout the line right up to the termination point
● Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels
● The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief
Teknisk specifikation
Allmänt
| Typ av nätverkskabel | Patch-kabel - CAT 5e |
|---|
| Teknik | UTP (oskärmat tvinnat par) |
|---|
| Kablageschema | T568B |
|---|
| Mantelmaterial | PVC |
|---|
| American Wire Gauge (AWG) | 24 |
|---|
| Trådar per kabel | 8 kablar |
|---|
| Par per kabel | 4 par |
|---|
| Pläterad kontakt | Guld |
|---|
| Egenskaper | Formpressad, hakfri, tvinnad |
|---|
| Längd | 1.5 m |
|---|
| Färg | Svart |
|---|
Anslutning
| Kontaktdon | RJ-45 - hane |
|---|
| Kontakt (andra änden) | RJ-45 - hane |
|---|
Diverse
| Standarder som följs | RoHS - upp till 350 MHz |
|---|
